Engine Ground Strap

Disconnect and isolate the battery negative cable.

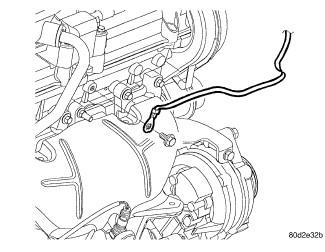

Fig 1: Ground Strap To Engine (1.6L)
Courtesy of CHRYSLER GROUP, LLC
For the 1.6L Engine, remove bolt from engine cylinder head.

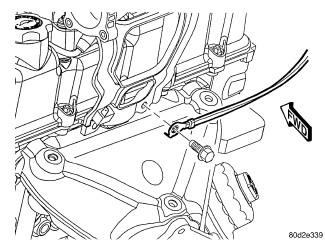

Fig 2: Ground Strap To Engine (2.0L/2.4L)
Courtesy of CHRYSLER GROUP, LLC
For the 2.0/2.4L Engine, remove bolt from engine cylinder head.

Fig 3: Ground Strap To Engine (2.2L)
Courtesy of CHRYSLER GROUP, LLC
For the 2.2L Engine, remove bolt from engine cylinder head.

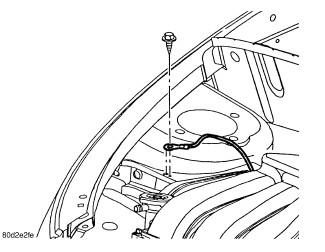

Fig 4: Ground Strap To Strut Tower
Courtesy of CHRYSLER GROUP, LLC
Remove bolt from strut tower and remove strap.
