Instrument Panel Speaker

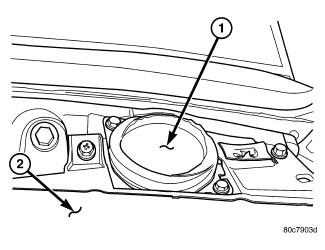

Fig 1: Instrument Panel & Speaker
GC0098484Courtesy of CHRYSLER GROUP, LLC
  1. Connect wire harness connector to speaker (1).
  2. Install speaker screws.
  3. Install instrument panel (2) top cover. Refer to COVER, INSTRUMENT PANEL, INSTALLATION .
  4. Connect the battery negative cable.
