B16D5-Right DRL Lamp Control Circuit High: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

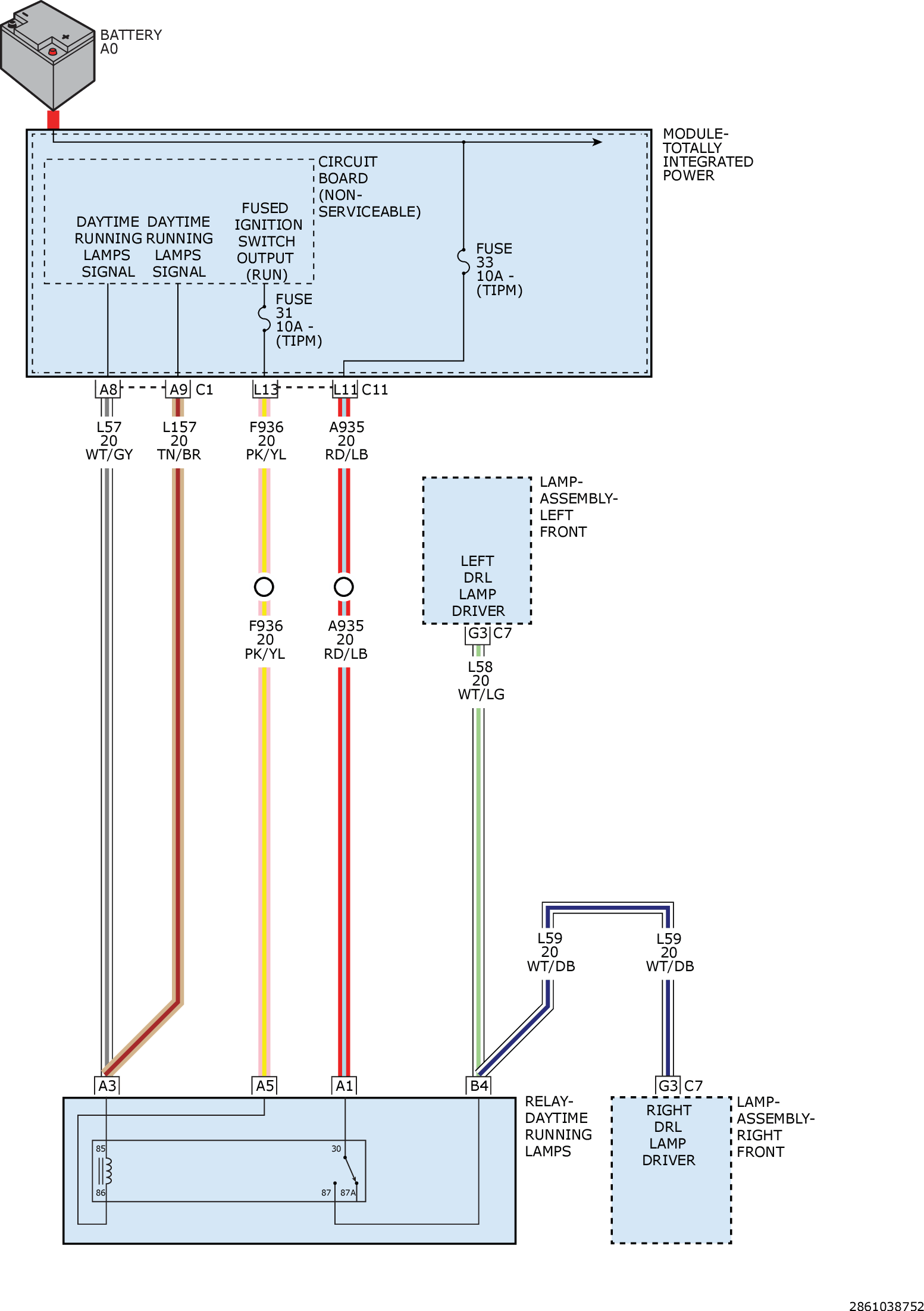

Fig 1: Left/Right DRL Lamp Control - Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
