Differential Bearing: Fwd: AWD

WARNING: This page is about a different variant/trim than selected.

Remove the transaxle from the vehicle. Refer to REMOVAL .
Separate the Bell housing from the transaxle housing. Refer to DISASSEMBLY .

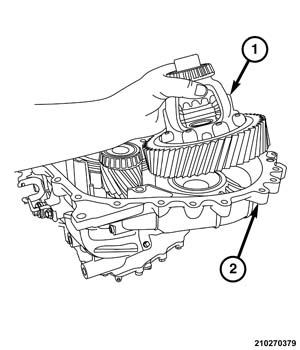

Fig 1: Differential & Transaxle Housing
Courtesy of CHRYSLER GROUP, LLC
Separate the differential (1) from the transaxle housing (2). Refer to DISASSEMBLY .

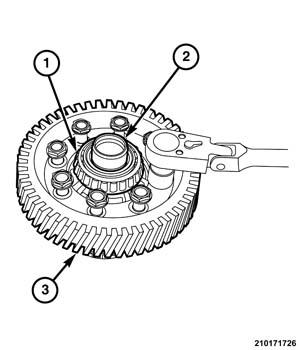

Fig 2: Differential Ring Gear & Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove bolts holding the ring gear (3) to the differential (2)

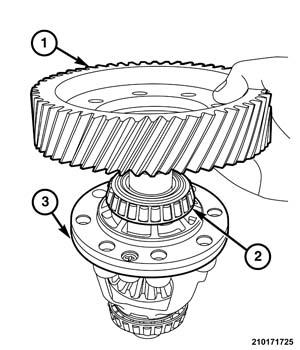

Fig 3: Differential, Ring Gear & Bearing
Courtesy of CHRYSLER GROUP, LLC
Separate the ring gear (1) from the differential (3).

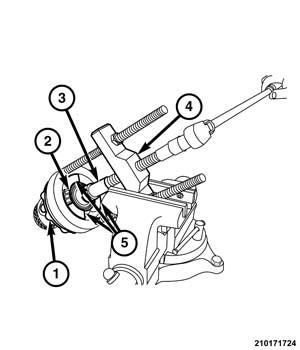

Fig 4: Removing Bearing From Differential
Courtesy of CHRYSLER GROUP, LLC
Using tools press (special tool #C-293-PA, Puller, Press) (4), collets (special tool #C-293-62, Block Set, Puller) (5), and plug (special tool #9678, Press Plug) (3), secured in a vise, remove the bearing (2) from the differential (1) (PTU side shown in illustration).
