NOTE:

If the bearings are being replaced along with the differential or a transaxle housing component, the select shim thickness will need to be established. If only the bearing and race are being replaced, the original shim can be reused.

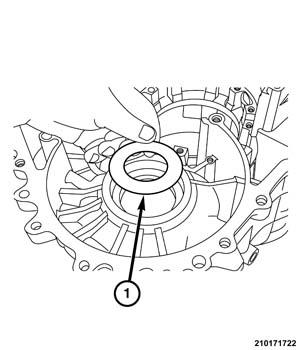

Fig 1: Differential Bearing Race Select Shim

Courtesy of CHRYSLER GROUP, LLC

Install the select shim (1) into the bearing race bore in the housing.

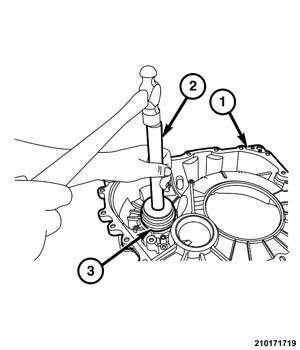

Fig 2: Special Tool #9668 & Differential Bearing Race
Courtesy of CHRYSLER GROUP, LLC

NOTE:
When installing the differential bearing race, do not allow the race to tip and bind as it is driven into the bore.
Using tools (special tool #9668, Remover/Installer, Bearing Cup) (3) and (special tool #C-4171, Driver Handle, Universal) (2), carefully drive the bearing race into the bore in the housing.
Prepare to reassemble the transaxle. If necessary, perform the Turning Torque Measurement procedure. Refer to BEARING TURNING TORQUE MEASUREMENT .
