Transfer Gear (Driven) Bearing

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transaxle from the vehicle. Refer to REMOVAL .
    Fig 1: Transaxle & Transfer Gear
    GC0154821Courtesy of CHRYSLER GROUP, LLC
  2. Disassemble the transaxle to remove the transfer gear. Refer to DISASSEMBLY .

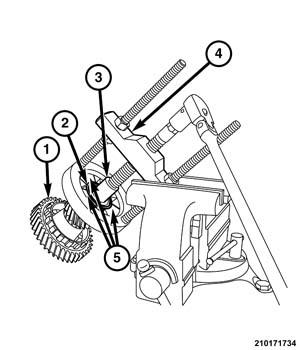

    Fig 2: Transfer Gear, Special Tools & Vice
    GC0154941Courtesy of CHRYSLER GROUP, LLC
  3. Using tools (special tool #C-293-PA, Puller, Press) press (4), (special tool #C-293-48, Block Set, Puller) or (special tool #C-293-39, Block Set, Puller) collets (5), and (special tool #C-4996, Adapter, Plug) plug (3), secured in a vise, remove the bearing (2) from the transfer gear (1) (pinion side shown in illustration).
