Transfer Gear (Driven) Bearing Race

WARNING: This page is about a different variant/trim than selected.

Remove the transaxle from the vehicle. Refer to REMOVAL .
Disassemble the transaxle. Refer to DISASSEMBLY .

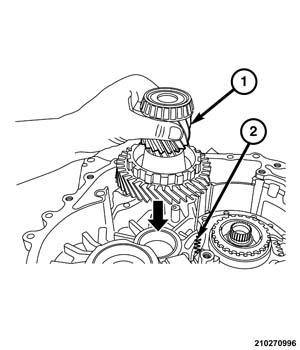

Fig 1: Transaxle & Transfer Gear
Courtesy of CHRYSLER GROUP, LLC
Remove the transfer gear.

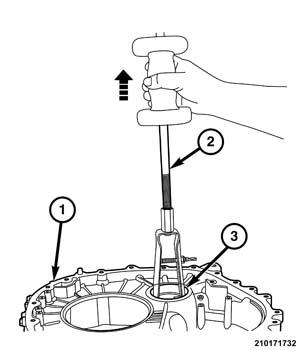

Fig 2: Removing Transfer Gear Bearing Race
Courtesy of CHRYSLER GROUP, LLC
Using tool and slide hammer (2), remove the transfer gear bearing race (3) from the bell housing (1) and transaxle housing (bell housing shown in illustration).

Fig 3: Special Tool #9664
Courtesy of CHRYSLER GROUP, LLC

(special tool #9664, Remover, Bearing Cup)

Fig 4: Special Tool #C-637
Courtesy of CHRYSLER GROUP, LLC

(special tool #C-637, Slide Hammer, Universal)

Fig 5: Transfer Gear Bearing Select Shim
Courtesy of CHRYSLER GROUP, LLC
Remove select shim (2) from bottom of transfer gear bearing race bore (3). Mark the shim to aid installation (bell housing shown in illustration).
