Brake And Piston, 2-6: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the transaxle from the vehicle
Disassemble the transaxle to remove the bell housing portion of the transaxle housing.
Remove the fluid pump.

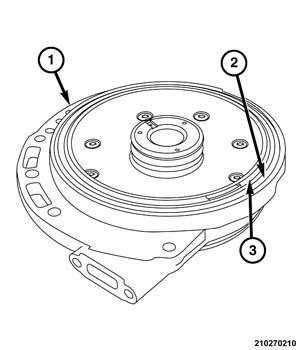

Fig 1: Fluid Pump & 2-6 Brake Piston
Courtesy of CHRYSLER GROUP, LLC
Position the fluid pump on a clean work surface with the 2-6 brake piston facing upward.
NOTE:
The 2-6 brake piston return spring and retainer will self-eject when the snap-ring is removed.
Place one hand over the 2-6 brake piston assembly to prevent the piston return spring and retainer from ejecting from the fluid pump housing when the snap-ring is released.

Fig 2: Fluid Pump Housing, Snap-Ring & 2-6 Brake Piston Return Spring & Retainer
Courtesy of CHRYSLER GROUP, LLC
Using a suitable snap-ring pliers, remove the snap-ring holding the 2-6 brake piston return spring and retainer into the fluid pump housing.

Fig 3: Return Spring & Return Spring Retainer
Courtesy of CHRYSLER GROUP, LLC
Separate the return spring retainer from the return spring.

Fig 4: Fluid Pump Housing & Return Spring
Courtesy of CHRYSLER GROUP, LLC
Separate the return spring from the fluid pump housing.

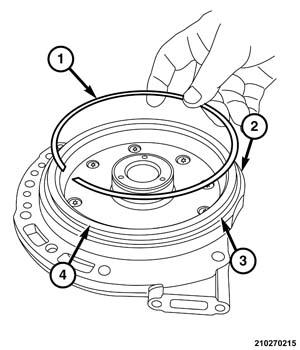

Fig 5: Fluid Pump Housing Assembly & 2-6 Brake Piston
Courtesy of CHRYSLER GROUP, LLC
Using two small pocket screw driver pry and lift the 2-6 brake piston out of the groove in the fluid pump housing assembly.

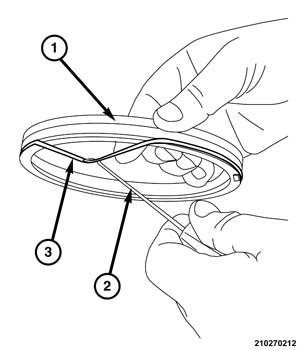

Fig 6: Removing 2-6 Brake Piston & Inner O-Ring Seal
Courtesy of CHRYSLER GROUP, LLC
Using a suitable pick tool, remove the inner o-ring seal from the groove in he center of the 2-6 brake piston.

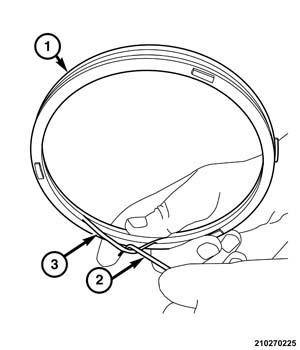

Fig 7: Removing 2-6 Brake Piston & Outer O-Ring Seal
Courtesy of CHRYSLER GROUP, LLC
Using a suitable pick tool, remove the outer o-ring seal from the groove in the circumference of the 2-6 brake piston.
