Seal, Differential: Removal: Fwd

WARNING: This page is about a different variant/trim than selected.

Remove the halfshaft from the vehicle. REMOVAL

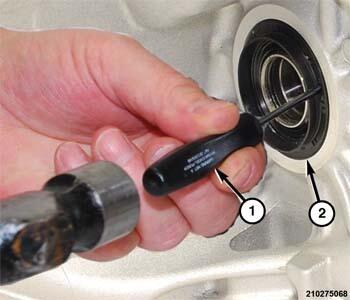

Fig 1: Punching Hole In Differential Seal
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Keep the punch tool in the center of the seal to avoid damage to the transaxle housing.
Using a suitable slide awl tool and hammer, punch a hole in the metal armature inside the seal.

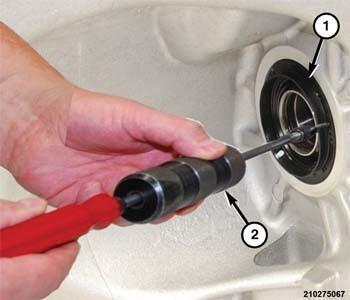

Fig 2: Slide Hammer & Differential Seal
Courtesy of CHRYSLER GROUP, LLC
Use a suitable Slide Hammer Dent Puller, to remove the seal.
Thread the sheet metal screw of the dent puller into the punched hole in the seal.
Tap outward on the slide hammer until the seal comes out of the seal bore.
