Sensor, Transaxle Range: Removal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the battery tray (Refer to 08 - Electrical/Battery System/TRAY, Battery/Removal) .

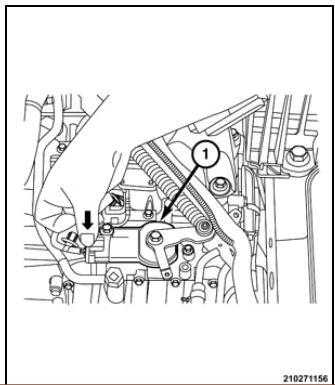

  2. Disconnect the Transmission Range Sensor (TRS) (1) wire harness connector.
    G00593629Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the shift cable.

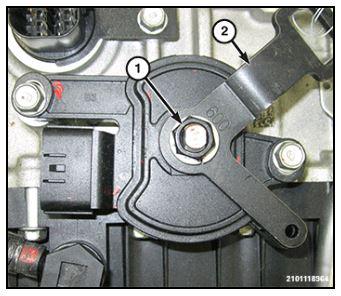

  4. Remove the manual control lever nut (1).
    G00593630Courtesy of CHRYSLER GROUP, LLC
  5. Remove the manual control lever (2).

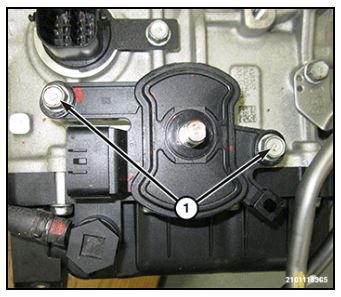

  6. Remove the TRS bolts (1).
    G00593631Courtesy of CHRYSLER GROUP, LLC

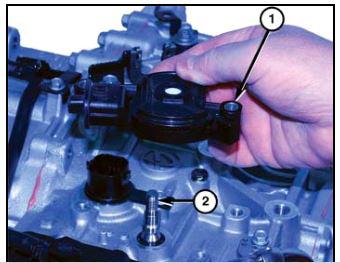

  7. Remove the TRS (1).
    G00593632Courtesy of CHRYSLER GROUP, LLC
