Diagnostic Test

CHECK FOR AN INTERMITTENT CONDITION
1. Turn the ignition on and open one of the front doors.
  NOTE:
  A front door must remain open whenever checking or erasing Amplifier DTCs.
2. Using the scan tool, record and erase the Amplifier DTCs.
3. Cycle the ignition switch from on to off, wait five seconds and then back to on.
4. Turn the Radio on and set the volume to 25.
5. Adjust the speakers to the rear and center.
6. Using the scan tool, read the active Amplifier DTCs.
  Does the scan tool display active: B1475-CHANNEL 5 AUDIO SPEAKER OUTPUT CIRCUIT LOW?

  Yes
  - Go To 3
  No
  - Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals and correct pin tension.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE - BODY VERIFICATION TEST .
LEFT REAR SPEAKER

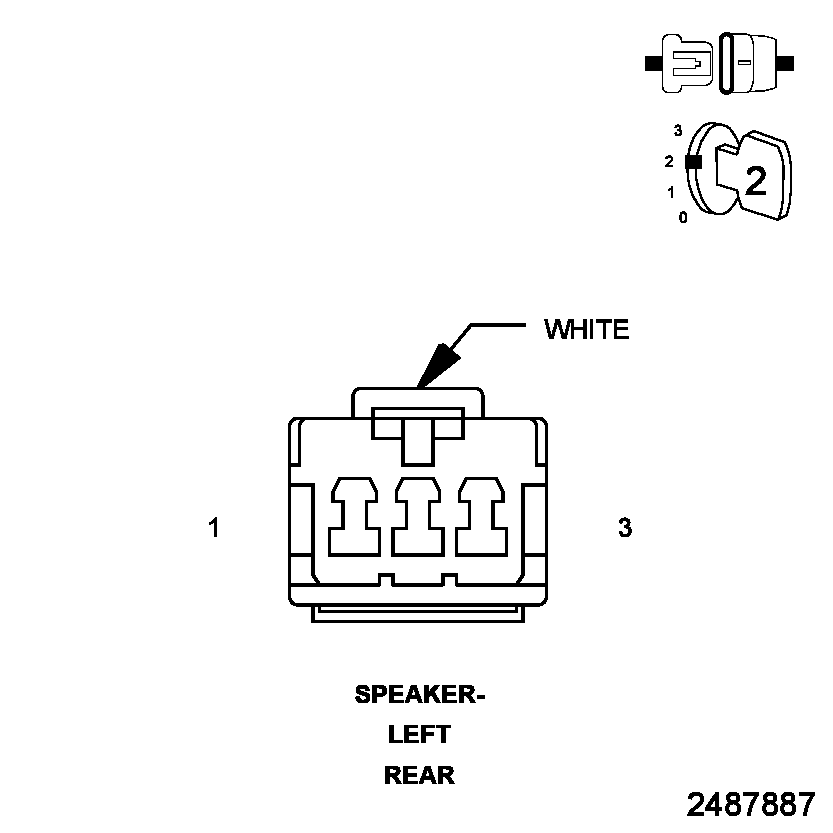

Fig 1: Left Rear Speaker Harness Connector End View
Courtesy of CHRYSLER GROUP, LLC
1. With the scan tool, erase the DTCs.
2. Turn the ignition off.
3. Disconnect the Left Rear Speaker harness connector.
4. Turn the ignition on.
5. Turn the radio on and set the volume to 25.
6. Adjust the speakers to the rear and center.
7. With the scan tool, read the active Amplifier DTCs.
  Does the scan tool display active: B1475-CHANNEL 5 AUDIO SPEAKER OUTPUT CIRCUIT LOW?

  Yes
  - Go To 3
  No
  - Replace the Amplified Left Rear Speaker in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE - BODY VERIFICATION TEST .
CHECK THE (X205) AMPLIFIED LEFT REAR SPEAKER (+) CIRCUIT FOR A SHORT TO GROUND

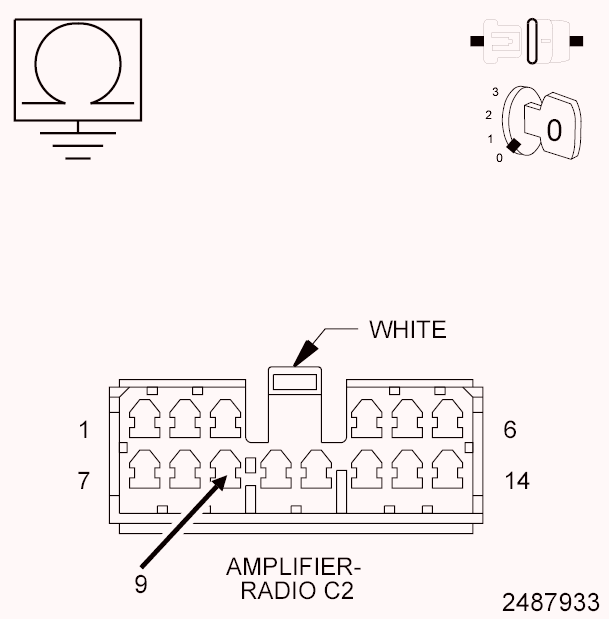

Fig 2: Measuring Resistance Between Ground & Amplified Left Rear Speaker (+) Circuit
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the Amplifier C2 harness connector.
3. Measure the resistance between ground and the (X205) Amplified Left Rear Speaker (+) circuit.
  Is the resistance below 10K Ohms?

  Yes
  - Repair the (X205) Amplified Left Rear Speaker (+) circuit for a short to ground.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE - BODY VERIFICATION TEST .
  No
  - Go To 4
CHECK THE (X295) AMPLIFIED LEFT REAR SPEAKER (-) CIRCUIT FOR A SHORT TO GROUND

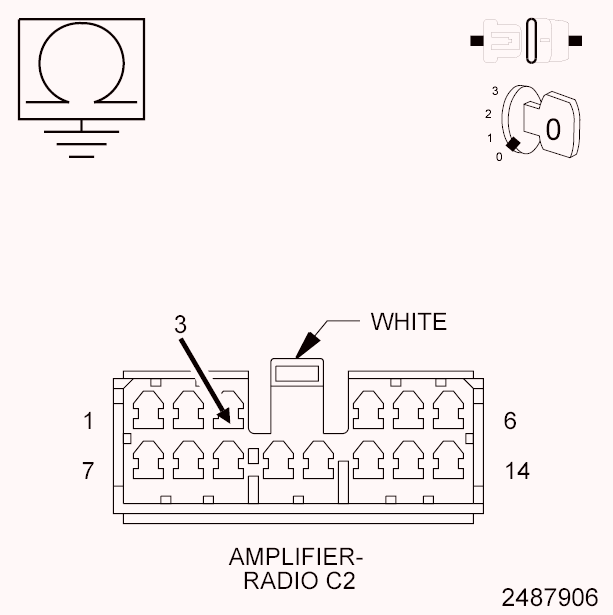

Fig 3: Measuring Resistance Between Ground & Amplified Left Rear Speaker (-) Circuit
Courtesy of CHRYSLER GROUP, LLC
1. Measure the resistance between ground and the (X295) Amplified Left Rear Speaker (-) circuit.
  Is the resistance below 10K Ohms?

  Yes
  - Repair the (X295) Amplified Left Rear Speaker (-) for a short to ground.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE - BODY VERIFICATION TEST .
  No
  - Replace the Amplifier in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE - BODY VERIFICATION TEST .
