Diagnostic Test

DTC IS ACTIVE
NOTE:
If P0627, P0628 or P0629 has set along with this DTC, diagnose those DTCs first before continuing.
1. Ignition on, engine not running.
2. With the scan tool, select View DTCs.
  Is the status Active for this DTC?

  Yes
  - Go To 2
  No
  - Perform the CHECKING FOR AN INTERMITTENT DTC diagnostic procedure. Refer to INTERMITTENT CONDITION .
FUEL PUMP MODULE

Fig 1: Probing Fuel Pump Control Output Circuit With 12-Volt Test Light
Courtesy of CHRYSLER GROUP, LLC
1. Disconnect the Fuel Pump Module harness connector.
2. Ignition on, engine not running.
3. With the scan tool, actuate the Fuel Pump.
4. Using a 12-volt test light connected to ground, check the (N1) Fuel Pump Control Output circuit at the Fuel Pump Module harness connector.
  Does the test light illuminate brightly and flash on and off?

  Yes
  - Replace the Fuel Pump Module in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE - BODY VERIFICATION TEST .
  No
  - Go To 3
(N1) FUEL PUMP CONTROL OUTPUT CIRCUIT OPEN

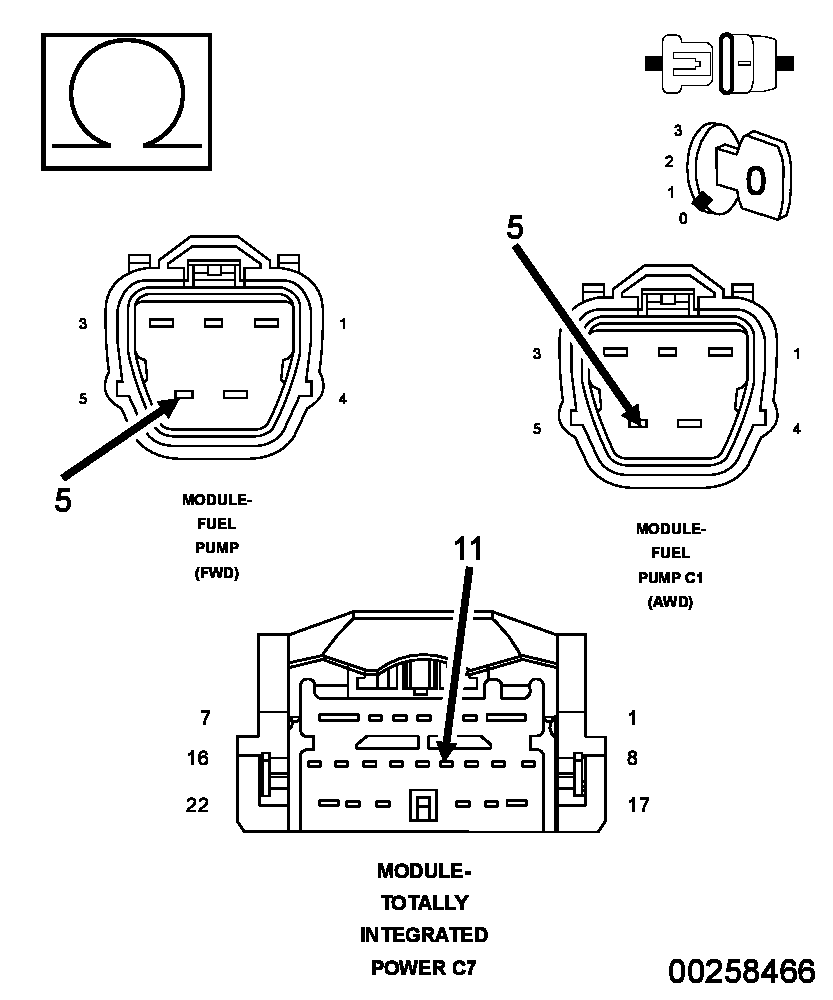

Fig 2: Measuring Resistance Of Fuel Pump Control Output Circuit Between TIPM Harness Connector & Fuel Pump Module Harness Connector
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off
2. Disconnect the TIPM C7 harness connector.
3. Measure the resistance of the (N1) Fuel Pump Control Output circuit between the TIPM C7 harness connector and the Fuel Pump Module harness connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go To 4
  No
  - Repair the open in the (N1) Fuel Pump Control Output circuit.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE - BODY VERIFICATION TEST .
TOTALLY INTEGRATED POWER MODULE (TIPM)
NOTE:
Before continuing, check the TIPM harness connector terminals for corrosion, damage or terminal push out. Repair as necessary.
1. Using the schematics as a guide, inspect the wire harness and connectors.
2. Pay particular attention to all power and ground circuits.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE - BODY VERIFICATION TEST .
  No
  - Replace the Totally Integrated Power Module (TIPM) in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE - BODY VERIFICATION TEST .
