Bearing And Race, Input: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

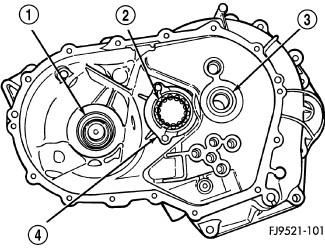

Fig 1: Input Bearing, Differential Bearing, Output Bearing, & Bearing Retainer

Courtesy of CHRYSLER GROUP, LLC

1 - DIFFERENTIAL BEARING

2 - OUTPUT BEARING

3 - INPUT BEARING

4 - BEARING RETAINER

The input bearing (3) is a one-piece bearing and sleeve unit. The sleeve is the slide point for the clutch-release bearing and lever.

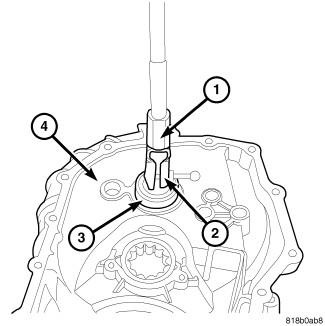

Fig 2: Puller, Slide Hammer & Input Bearing

Courtesy of CHRYSLER GROUP, LLC

Install Puller (special tool #9585, Remover, Bearing Cup) (2) and Slide Hammer (special tool #C-637, Slide Hammer, Universal) (1) over into bearing on the gear case side of the transaxle clutch housing (4).
Pull the input bearing (3) out of the housing.
