Bearing And Race, Output: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

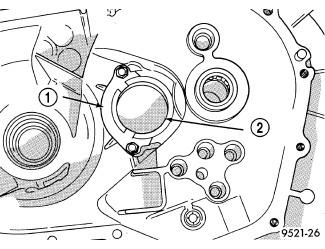

Fig 1: Output Bearing Strap

Courtesy of CHRYSLER GROUP, LLC

1 - BEARING RETAINER

2 - OUTPUT BEARING RACE

Remove screws at output bearing retainer strap (1).

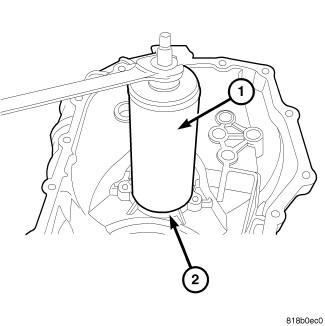

Fig 2: Removing Output Bearing
Courtesy of CHRYSLER GROUP, LLC
Install Puller (special tool #L-4518, Remover, Bearing Cup) (1) and remove output bearing (2).
