Bearing And Race, Output: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

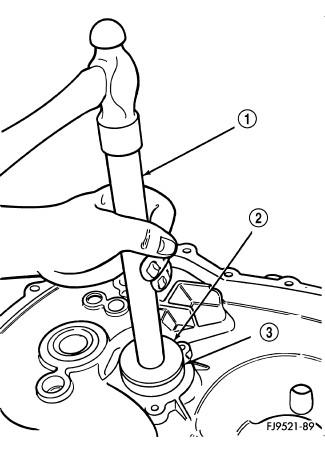

Fig 1: Output Bearing Race Installation

Courtesy of CHRYSLER GROUP, LLC

1 - HANDLE C-4171

2 - INSTALLER C-4628

3 - OUTPUT BEARING RACE

NOTE:

Properly install race with tabs on lock feature.

Line up output bearing (3) to bore.
Insert tool Installer (special tool #8692, Installer, Bearing Cup) (2) with Handle (special tool #C-4171, Driver Handle, Universal) (1) onto output bearing. Tap bearing into bore. Verify that the larger diameter of the cage is facing outward. Position bearing retaining strap. Tighten bolts to 12 N.m (105 in. lbs.).
