Bushing(S), Shift Rail: Removal: Removal
WARNING: This page is about a different variant/trim than selected.
Courtesy of CHRYSLER GROUP, LLC

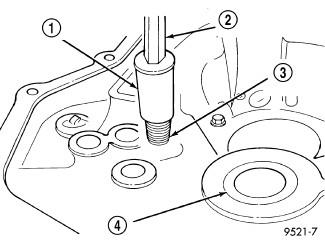

| 1 - REMOVER 6786 |
| 2 - SLIDE HAMMER C-3752 |
| 3 - SHIFTER RAIL BUSHING |
| 4 - INPUT BEARING |
- Thread Remover (special tool #6786, Remover, Bushing) (1) into shift rail bushing.
- Install slide hammer (special tool #C-3752, Slide Hammers) (2) onto tool.
- Remove bushing (3) using slide hammer and tool assembly.
