Bushing(S), Shift Select Shaft: Removal: Removal
WARNING: This page is about a different variant/trim than selected.
Courtesy of CHRYSLER GROUP, LLC

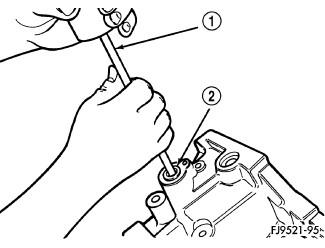

| 1 - SLIDE HAMMER C-3752 |
| 2 - SHIFTER SHAFT BUSHING |
- Install Slide Hammer (special tool #C-3752, Slide Hammers) (1) through the select bushing.
- Thread nut and washer onto slide hammer.
- Using the slide hammer, remove the select shaft bushing (2).
