Measure And Adjust Side Gear End-Play

WARNING: This page is about a different variant/trim than selected.

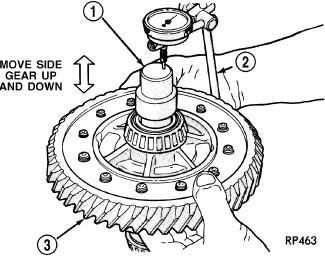

Fig 1: Checking Side Gear End Play

Courtesy of CHRYSLER GROUP, LLC

1 - ADAPTOR C-4996 (NOTE POSITION)

2 - DIAL INDICATOR SET

3 - DIFFERENTIAL ASSEMBLY

Rotate the assembly two full revolutions both clockwise and counterclockwise. Set up dial indicator and record end play.
Rotate side gear 90 degrees and take another measurement (2). Again, rotate side gear 90 degrees and record a final measurement.
Using the smallest end play recorded, shim that side gear to within 0.001 to 0.013 inch. The other side gear should be checked using the same procedure.

CAUTION:

Side gear end play must be within 0.001 to 0.013 inch.
