Input Shaft, Transmission: Assembly: Assembly

WARNING: This page is about a different variant/trim than selected.

Fig 1: 3rd Gear Caged Needle Bearing

Courtesy of CHRYSLER GROUP, LLC

Place input shaft into shop press.
Install 3rd gear caged needle bearing (2).

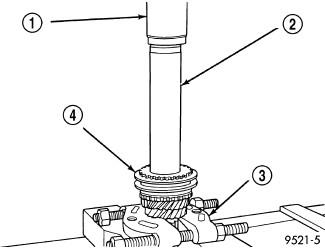

Fig 2: Press On 3rd Gear Synchronizer Hub
Courtesy of CHRYSLER GROUP, LLC
Install 3rd gear and 3-4 synchronizer (4) onto input shaft. Position Installer (special tool #6448A, Installer, Bearing/Gear) (2) over input shaft and press on synchronizer hub and 3rd gear. The synchronizer hub has the letter U stamped on the top face of the hub. This designates that the hub must be installed with the U facing upward.

Fig 3: Split Thrust Washer Separation Pin
Courtesy of CHRYSLER GROUP, LLC
Install a NEW 3-4 synchronizer snap ring into slot on input shaft.
Install blocking ring into 3-4 synchronizer. Install 4th gear caged needle bearing.
Install 4th gear onto input shaft.
Install 4-5 split thrust washer separation pin (1).

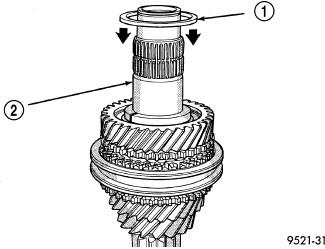

Fig 4: Split Thrust Washer Removal/Installation
Courtesy of CHRYSLER GROUP, LLC
Install split thrust washer (2) onto input shaft (1).

Fig 5: Retaining Ring Installation
Courtesy of CHRYSLER GROUP, LLC
Install split thrust washer retaining ring (1).

Fig 6: Caged Needle Bearing Removal/Installation
Courtesy of CHRYSLER GROUP, LLC
Install 5th gear caged needle bearing (2).

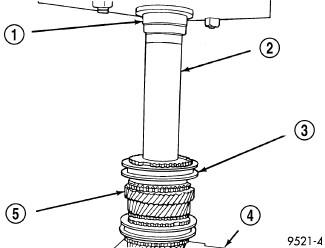

Fig 7: 5th Speed Gear Installation
Courtesy of CHRYSLER GROUP, LLC
Using Installer (special tool #6448A, Installer, Bearing/Gear) (2), install 5th speed gear (5) and synchronizer (3). The 5th gear synchronizer hub has the letter S stamped on the top face of the hub. This designates that the hub must be installed with the S facing upward.

Fig 8: 5th Synchro And Hub Snap Ring Removal/Installation
Courtesy of CHRYSLER GROUP, LLC
Install a NEW 5th gear synchronizer snap ring (4).
