Mechanism, Gearshift: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

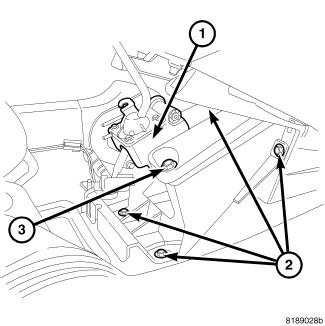

Fig 1: Shifter Bolts

Courtesy of CHRYSLER GROUP, LLC

Install shifter assembly. (1) to riser. Install and tighten bolts (3) to 7 N.m (61 in. lbs.).

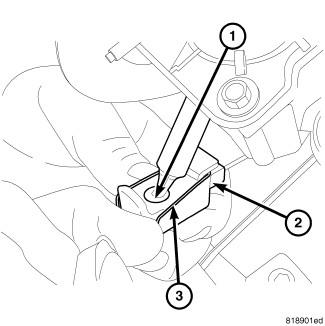

Fig 2: Shift Cable Retaining Clip, Cable, & Shift Lever
Courtesy of CHRYSLER GROUP, LLC
Install shift cable (2) to shifter lever (1) and secure cable to shifter bracket with clip (3).

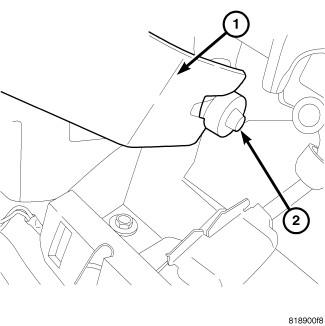

Fig 3: Select Cable To Shifter Lever
Courtesy of CHRYSLER GROUP, LLC
Install select cable to shifter lever and secure cable to shifter bracket.
Install the shifter housing. Refer to HOUSING, SHIFTER, INSTALLATION . Install rear power window switch (if equipped) and fasten harness to console (see appropriate Service Information).
Verify that shift pattern is aligned properly.
