Seal, Axle Drive Shaft: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

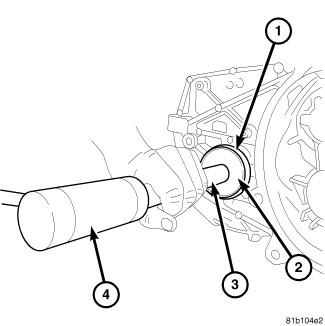

Fig 1: Installing Axle Shaft Seal (Bellhousing Side)
GC0082608Courtesy of CHRYSLER GROUP, LLC
  1. Clean axle shaft seal bore of any excess sealant.
  2. Align (bellhousing side) axle shaft seal with axle shaft seal bore.
  3. Install axle seal on Seal Installer (special tool #9928, Installer, Differential Oil Seal) and Handle (special tool #C-4171, Driver Handle, Universal) and insert into axle shaft seal bore.
  4. Tap seal into position until seated against transaxle case.

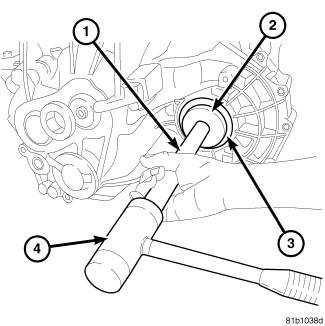

    Fig 2: Installing Axle Shaft Seal (Case Side)
    GC0082607Courtesy of CHRYSLER GROUP, LLC
  5. Align axle shaft seal with axle shaft seal bore.
  6. Install (case side) axle seal on Seal Installer 9934 and Handle (special tool #C-4171, Driver Handle, Universal) and insert into axle shaft seal bore.
  7. Tap seal into position until seated against transaxle case.
  8. Install the half shaft. Refer to INSTALLATION .
  9. Check transaxle fluid level and adjust as necessary. Refer to FLUID, STANDARD PROCEDURE .
