Switch, Backup Lamp: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

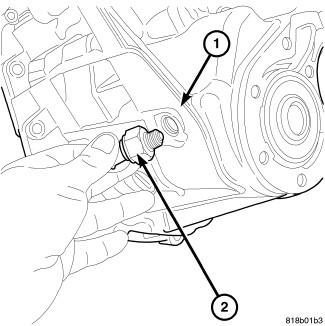

Fig 1: Backup Lamp Switch

GC0082674

Courtesy of CHRYSLER GROUP, LLC

Install back-up lamp switch (2). Teflon tape or equivalent must be used on switch threads. Tighten switch to 24 N.m (18 ft. lbs.).
CAUTION:
Do not overtighten switch.

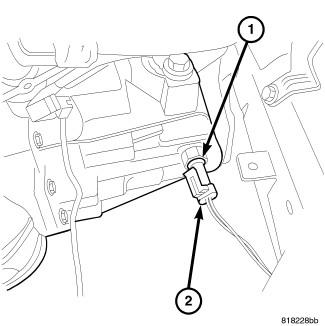

Fig 2: Backup Switch Connector
Courtesy of CHRYSLER GROUP, LLC
Connect back-up lamp switch wire harness connector (2).
Lower vehicle.
Verify back-up lamp operation.
