Air Cleaner: Installation: Installation

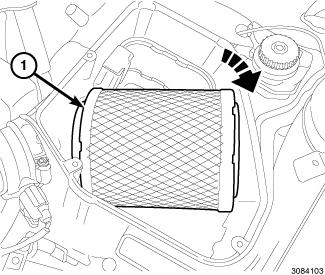

Fig 1: Air Cleaner Element

Courtesy of CHRYSLER GROUP, LLC

Install the new cleaner element (1).

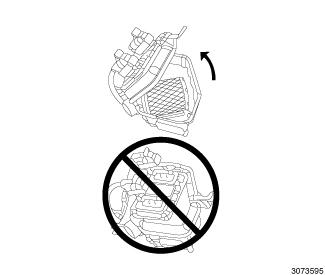

Fig 2: Electrical Connectors At Powertrain Control Module (PCM) - DO NOT Unplug
Courtesy of CHRYSLER GROUP, LLC

CAUTION:
Do Not unplug the electrical connectors from the Powertrain Control Module (PCM). A possible voltage spike can erase and damage the PCM.
Place the cover over the air cleaner housing. Hand tighten the cover screws.

Fig 3: Retainers, Fresh Air Inlet Duct & Air Cleaner Body
Courtesy of CHRYSLER GROUP, LLC
Install the support bracket bolt to the strut tower and tighten to 10 N.m (89 in. lbs.).
Install the fresh air inlet duct (3) on the air cleaner housing (1) and lock the retainers (2).
