Body, Air Cleaner: Removal: Removal

Fig 1: Retainers, Fresh Air Inlet Duct & Air Cleaner Body

Courtesy of CHRYSLER GROUP, LLC

Unlock the retainers (2) and remove the fresh air inlet duct (3) from air cleaner body (1).

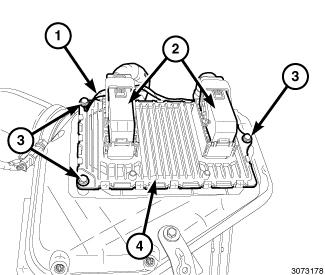

Fig 2: Electrical Connectors, PCM, Three Mounting Bolts & Ground Wire
Courtesy of CHRYSLER GROUP, LLC
Remove the bolts (3) that secure the PCM (4) to the air cleaner body cover and position aside.

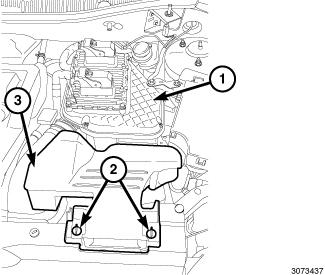

Fig 3: Air Cleaner Body, Air Inlet Tube & Make-Up Air Hose
Courtesy of CHRYSLER GROUP, LLC
Remove the air inlet tube (2) from the air cleaner body (1).
Disconnect the make-up air hose (3) from the air cleaner body.
Remove the support bracket bolt from the strut tower.
Pull upward to disengage the pins from the rubber grommets and remove the air cleaner body (1).
