Front Solenoid 1/1

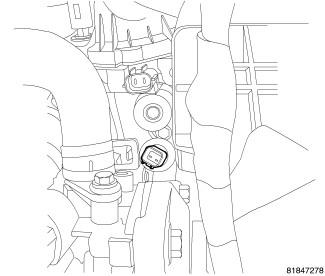

Fig 1: Oil Pressure Sensor
GC0084869Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect negative battery cable.
  2. Remove engine cover.
  3. Rotate hose clamp out of way.
  4. Disconnect oil pressure sensor electrical connector.
  5. Remove oil pressure sensor.
  6. Disconnect variable valve timing solenoid electrical connector.

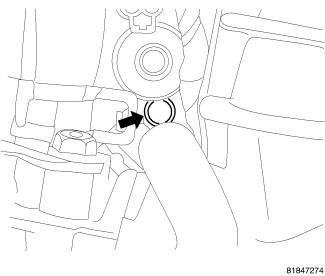

    Fig 2: Solenoid Mounting Bolt
    GC0084870Courtesy of CHRYSLER GROUP, LLC
  7. Remove variable valve timing solenoid mounting bolt.

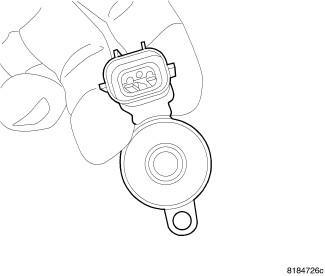

    Fig 3: Solenoid Mounting Tab 1/1
    GC0084871Courtesy of CHRYSLER GROUP, LLC
  8. Pull solenoid straight out of cylinder head.
