Rear Solenoid 1/2

Fig 1: Solenoid Mounting Tab 1/2
GC0084877Courtesy of CHRYSLER GROUP, LLC
  1. Rear variable valve timing solenoid. Note mounting tab location is different between front and rear solenoids.
  2. Install solenoid into cylinder head.
  3. Install mounting bolt and tighten to 12 N.m (9 ft. lbs.).
  4. Connect electrical connector to Variable valve timing solenoid.

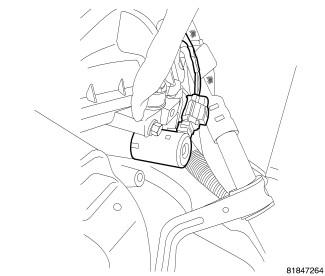

    Fig 2: Solenoid Location 1/2
    GC0084878Courtesy of CHRYSLER GROUP, LLC
  5. Connect negative battery cable.
  6. Install engine cover.
