Pump, Engine Oil: Inspection: Inspection
- Remove timing chain cover. Refer to COVER(S), ENGINE TIMING, REMOVAL .
- Remove oil pan. Refer to PAN, OIL, REMOVAL .

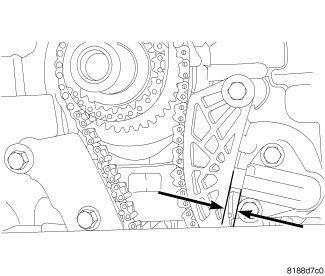

- Measure the distance between the tensioner body and the guide shoe as shown in illustration.
- If the distance is 10.1 mm (0.397 in.) or greater, replace the chain.
