TENSIONER, Engine Timing: Installation: Installation

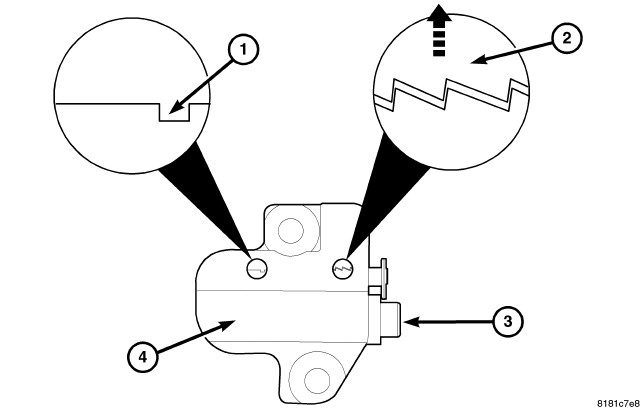

Fig 1: Tensioner Reset

Courtesy of CHRYSLER GROUP, LLC

Reset timing chain tensioner (4) by lifting up on ratchet (2) and pushing plunger (3) inward towards the tensioner body (4). Insert Tensioner Pin (special tool #8514, Pins, Tensioner) into slot (1) to hold tensioner plunger in the retracted position.

Fig 2: Timing Chain Tensioner
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Keep the slack in the timing chain on the tensioner side.
Install timing chain tensioner (1) and tighten bolts to 12 N.m (105 in. lbs.).
Remove timing Tensioner Pin (special tool #8514, Pins, Tensioner) (2).
Install the engine timing cover. Refer to COVER(S), ENGINE TIMING, INSTALLATION .

NOTE:

The Cam/Crank Variation Relearn procedure must be performed using the scan tool anytime there has been a repair/replacement made to a powertrain system, for example: flywheel, valvetrain, camshaft and/or crankshaft sensors or components. Refer to STANDARD PROCEDURE .
