Brackets, Support And Isolators: Removal: Removal

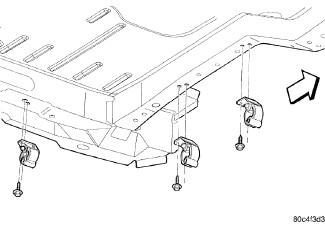

Fig 1: Exhaust System Isolator And Bracket

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect isolator from exhaust system component.
2. Remove screws attaching isolator bracket to underbody.
3. Remove isolator assembly.
