Liftgate Rattle Noise (23-048-15)

WARNING: This page is about the Compass High Altitude, 2.0L Eng VIN A, which is a different variant/trim than selected.

Publication date: 2015-12-08
Reference number: 23-048-15

LIFTGATE RATTLE NOISE

TECHNICAL SERVICE BULLETIN

Reference Number(s): 23-048-15, Date of Issue: December 08, 2015

CHRYSLER:	2016 Jeep Compass (MK49)
GROUP:	Body

NOTE: THIS SERVICE BULLETIN IS ALSO BEING RELEASED AS RAPID RESPONSE TRANSMITTAL (RRT) 15-118. ALL APPLICABLE SOLD AND UN-SOLD RRT VIN's HAVE BEEN LOADED. TO VERIFY THAT THIS RRT SERVICE ACTION IS APPLICABLE TO THE VEHICLE, USE VIP OR PERFORM A VIN SEARCH IN TECHCONNECT. ALL REPAIRS ARE REIMBURSABLE WITHIN THE PROVISIONS OF WARRANTY.

SUBJECT

Liftgate Rattle Noise

OVERVIEW

This bulletin involves installing a missing bolt at the passenger side liftgate hinge.

MODELS

MODELS CHART

2016

(MK49)

Jeep Compass

NOTE: This bulletin applies to vehicles within the following markets/countries: NAFTA, APAC.

NOTE: This bulletin applies to MK49 vehicles built on or after September 21, 2015 (MDH 0921XX) and on or before September 23, 2015 (MDH 0923XX).

SYMPTOM/CONDITION

Passenger liftgate hinge missing bolt securing the hinge.

DIAGNOSIS

If the vehicle's VIN is listed in VIP or your RRT VIN list, perform the Repair Procedure.

PARTS REQUIRED

PARTS DESCRIPTION CHART

Qty.	Part No.	Description
1	06104386AA	BOLT AND WASHER, Hex Head, M8X1.25X25.00
1 (AR)	04342250AC	Black Clear Coat (Touch Up Paint) (PX8) paint code
1 (AR)	05163648AA	Deep Cherry Red Crystal Pearl Coat (Touch Up Paint) (PRP) paint code
1 (AR)	05163738AB	Billet Silver Metallic Clear Coat (Touch Up Paint) (PSC) paint code
1 (AR)	68183829AA	Granite Crystal Metallic Clear Coat (Touch Up Paint) (PAU) paint code

NOTE: Each bottle of touch-up paint will service several vehicles (shop supply).

REPAIR PROCEDURE

Open the liftgate.

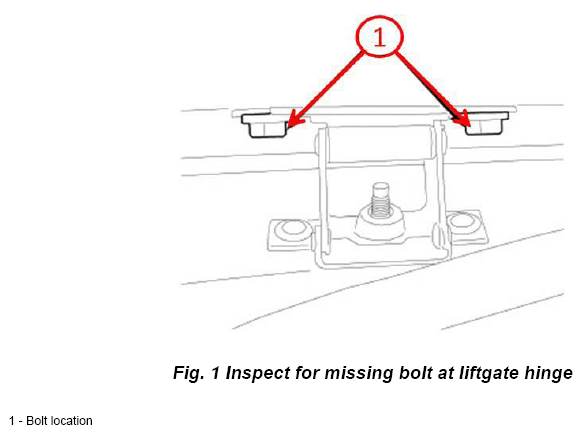

Is there a missing bolt (1) at the passenger liftgate hinge? (Fig. 1)
1. Yes >>> Proceed to Step #3.
2. No >>> This bulletin has been completed. Use LOP (23-40-20-9E) to close the active RRT.
Install the missing bolt (1) to the liftgate hinge. Tighten the bolt to 27 N.m (19 ft. lbs.).
Use touch up paint and paint the bolt head to match the body color of the vehicle.

POLICY

Reimbursable within the provisions of the warranty.

TIME ALLOWANCE

TIME ALLOWANCE CHART

Labor Operation No:	Description	Skill Category	Amount
23-40-20-9E	Missing Bolt At Liftgate Hinge (Visually Inspect) (0 - Introduction)	6 - Electrical and Body Systems	0.2 Hrs.
23-40-20-9F	Missing Bolt At Liftgate Hinge (Install) (0 - Introduction)	6 - Electrical and Body Systems	0.2 Hrs.

FAILURE CODE

FAILURE CODE CHART

ZZ	Service Action
