Diagnostic Test

VERIFY ACTIVE DTC
NOTE:
Make sure the battery is fully charged.

NOTE:
The scan tool, SRS Load Tool Kit (special tool #8443A, SRS Load Tool) and DVOM are required to perform the following test.
1. Turn the ignition on.
2. With the scan tool, read the active ORC DTCs.
  Does the scan tool display B1C49-1ST ROW PASSENGER RETRACTOR PRETENSIONER CIRCUIT OPEN DTC?

  Yes
  - Go To 2
  NO
  - Perform the AIRBAG SYSTEM INTERMITTENT TEST. Refer to AIRBAG SYSTEM INTERMITTENT TEST .
CHECK FOR PASSENGER SEAT BELT RETRACTOR TENSIONER CIRCUIT OPEN

Fig 1: Checking Passenger Seat Belt Retractor Tensioner Circuit
Courtesy of CHRYSLER GROUP, LLC

WARNING:
Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the Passenger Seat Belt Retractor Tensioner connector.
  NOTE:
  Check the connectors - Clean and repair as necessary.
2. Connect the SRS Load Tool Kit (special tool #8443A, SRS Load Tool) and SRS Load Tool Jumper (special tool #8443-4, Jumpers, 2 Pin) to the Passenger Seat Belt Retractor Tensioner connector.
  WARNING:
  Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
3. With the scan tool, read the active ORC DTCs.
  Does the scan tool display B1C49-1ST ROW PASSENGER RETRACTOR PRETENSIONER CIRCUIT OPEN DTC?

  Yes
  - Go To 3
  No
  - Replace the Passenger Seat Belt Retractor Tensioner in accordance with the Service Information.
  - Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to STANDARD PROCEDURE - AIRBAG SYSTEM VERIFICATION TEST .
CHECK (R56) PASSENGER SEAT BELT RETRACTOR TENSIONER DATA CIRCUIT FOR AN OPEN

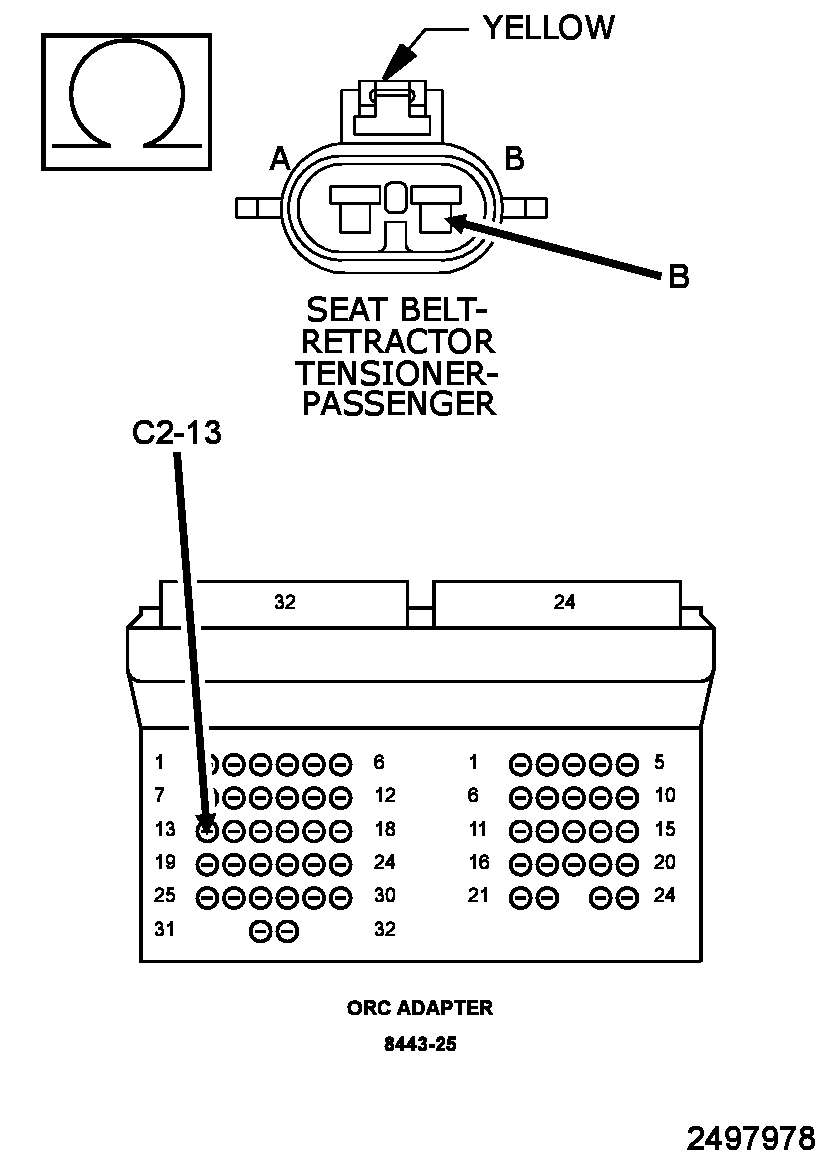

Fig 2: Checking Passenger Seat Belt Retractor Tensioner Data Circuit For An Open
Courtesy of CHRYSLER GROUP, LLC

WARNING:
Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the SRS Load Tool Kit (special tool #8443A, SRS Load Tool) and Jumper from the Passenger Seat Belt Retractor Tensioner connector.
2. Disconnect the ORC connectors.
  NOTE:
  Check the connectors - Clean and repair as necessary.
3. Connect the SRS Load Tool Adaptor (special tool #8443-25, 56 Way ACM Adapter) to the ORC connectors.
4. Measure the resistance of the (R56) Passenger Seat Belt Retractor Tensioner Line 1 circuit between the Passenger Seat Belt Retractor Tensioner connector cavity B and the SRS Load Tool Adaptor (special tool #8443-25, 56 Way ACM Adapter) cavity C2-13.
  Is the resistance below 1.0 Ohm?

  Yes
  - Go To 4
  No
  - Repair the (R56) Passenger Seat Belt Retractor Pretensioner Line 1 circuit for and open.
  - Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to STANDARD PROCEDURE - AIRBAG SYSTEM VERIFICATION TEST .
CHECK (R54) PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2 CIRCUIT FOR AN OPEN

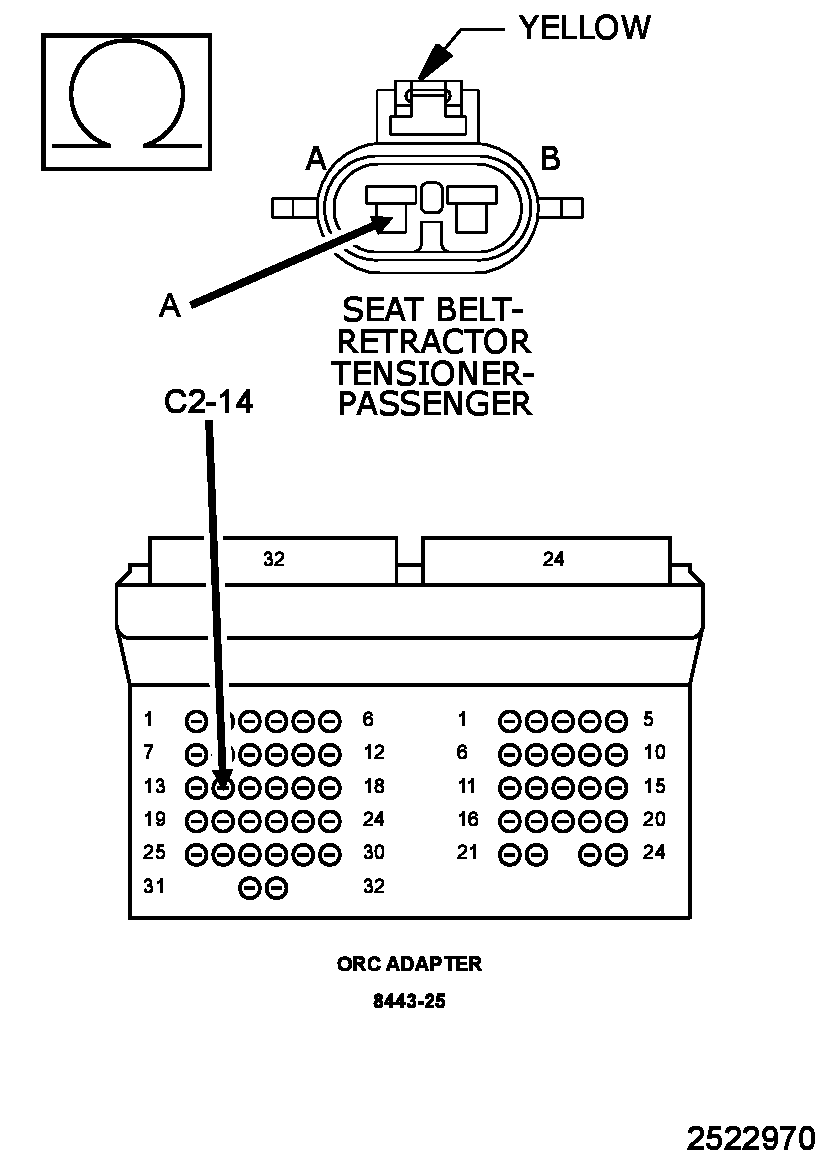

Fig 3: Checking Passenger Seat Belt Retractor Tensioner Line 2 Circuit For An Open
Courtesy of CHRYSLER GROUP, LLC
1. Measure the resistance of the (R54) Passenger Seat Belt Retractor Tensioner Line 2 circuit between the Passenger Seat Belt Retractor Tensioner connector cavity A and the SRS Load Tool Adaptor (special tool #8443-25, 56 Way ACM Adapter) cavity C2-14.
  Is the resistance below 1.0 Ohm?

  Yes

  WARNING:
  If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to follow these instructions may result in possible serious or fatal injury.
  - Replace the ORC in accordance with Service Information.
  - Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to STANDARD PROCEDURE - AIRBAG SYSTEM VERIFICATION TEST .
  No
  - Repair the (R54) Passenger Seat Belt Retractor Tensioner Line 2 circuit for and open.
  - Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to STANDARD PROCEDURE - AIRBAG SYSTEM VERIFICATION TEST .
