Diagnostic Test

VERIFY ACTIVE DTC
NOTE:
Make sure the battery is fully charged.

NOTE:
The scan tool, SRS Load Tool Kit (special tool #8443A, SRS Load Tool) and DVOM are required to perform the following test.
1. With the scan tool, read the active ORC DTCs.
  Does the scan tool display B1C4A-1ST ROW PASSENGER RETRACTOR PRETENSIONER CIRCUIT SHORTED TOGETHER DTC?

  Yes
  - Go To 2
  No
  - Perform the AIRBAG SYSTEM INTERMITTENT TEST. Refer to AIRBAG SYSTEM INTERMITTENT TEST .
CHECK FOR SHORTED PASSENGER SEAT BELT RETRACTOR TENSIONER

Fig 1: Checking Passenger Seat Belt Retractor Tensioner Circuit
Courtesy of CHRYSLER GROUP, LLC

WARNING:
Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the Passenger Seat Belt Tensioner connector.
  NOTE:
  Check the connectors - Clean and repair as necessary.
2. Connect the SRS Load Tool Kit (special tool #8443A, SRS Load Tool) and SRS Load Tool Jumper (special tool #8443-4, Jumpers, 2 Pin) to the Passenger Seat Belt Retractor Tensioner connector.
  WARNING:
  Turn the ignition on then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
3. With the scan tool, read the active ORC DTCs.
  Does the scan tool display B1C4A-1ST ROW PASSENGER RETRACTOR PRETENSIONER CIRCUIT SHORTED TOGETHER DTC?

  Yes
  - Go To 3
  No
  - Replace the Passenger Seat Belt Retractor Tensioner in accordance with the Service Information.
  - Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to STANDARD PROCEDURE - AIRBAG SYSTEM VERIFICATION TEST .
CHECK (R56) PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 1 CIRCUIT FOR A SHORT TO (R54) PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2 CIRCUIT

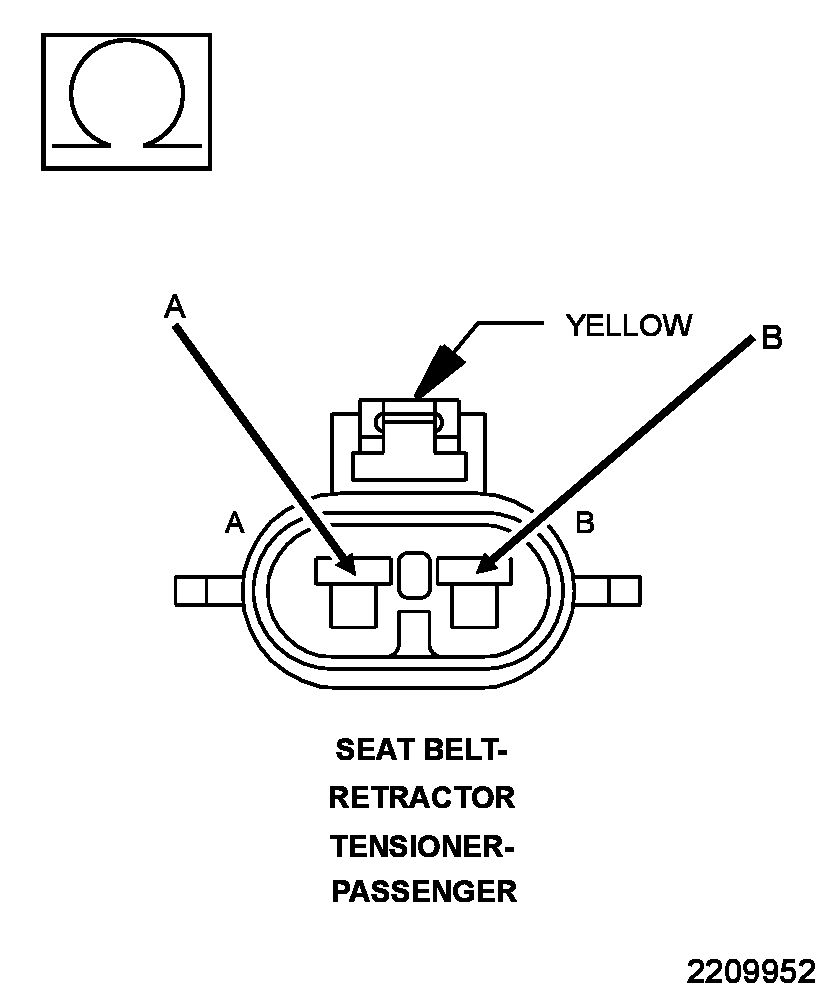

Fig 2: Checking Passenger Seat Belt Retractor Tensioner Line 1 Circuit For A Short To Retractor Tensioner Line 2 Circuit
Courtesy of CHRYSLER GROUP, LLC

WARNING:
Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the SRS Load Tool Kit (special tool #8443A, SRS Load Tool) and Jumper from the Passenger Seat Belt Retractor Tensioner connector.
2. Disconnect the ORC connectors.
  NOTE:
  Check the connectors - Clean and repair as necessary.
3. Connect the SRS Load Tool Adapter (special tool #8443-25, 56 Way ACM Adapter) to the ORC connectors.
4. Measure the resistance between the (R56) Passenger Seat Belt Retractor Tensioner Line 1 circuit cavity B and the (R54) Passenger Seat Belt Retractor Tensioner Line 2 circuit cavity A at the Passenger Seat Belt Retractor Tensioner connector.
  Is the resistance below 10K Ohms?

  Yes
  - Repair the (R56) Passenger Seat Belt Retractor Tensioner Line 1 circuit for a short to the (R54) Passenger Seat Belt Retractor Tensioner Line 2 circuit.
  - Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to STANDARD PROCEDURE - AIRBAG SYSTEM VERIFICATION TEST .
  No

  WARNING:
  If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to follow these instructions may result in possible serious or fatal injury.
  - Replace the ORC in accordance with the Service Information.
  - Perform the AIRBAG SYSTEM VERIFICATION TEST. Refer to STANDARD PROCEDURE - AIRBAG SYSTEM VERIFICATION TEST .
