Diagnostic Test

  1. ACTIVE DTC
    NOTE:

    Diagnose and repair any system voltage DTCs before continuing with this test.

    NOTE:

    Diagnose and repair any CMP sensor or CKP sensor DTCs before continuing with this test.

    NOTE:

    Diagnose and repair any oil pressure or oil pressure sensor DTCs before continuing with this test.

    1. Start the engine and allow it to reach normal operating temperature.
      WARNING:

      When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts or fan. Do not wear loose clothing. Failure to follow these instructions may result in possible serious or fatal injury.

    2. With the scan tool, Clear DTCs in the Powertrain Control Module (PCM).
    3. Test drive the vehicle under the conditions in which the DTC is monitored, as outlined above.
    4. With the scan tool, select View DTCs.

      Is the status Active for this DTC?

      Yes

      • Go To  2

      No

  2. CAMSHAFT 1/2 POSITION SOLENOID/OIL CONTROL VALVE INSPECTION
    1. Turn the ignition off.
    2. Remove the Camshaft 1/2 Position Solenoid/Oil Control Valve in accordance with the Service Information. Do not disconnect the harness connector. For 2.0L, refer to CONTROL VALVE, OIL INTAKE, REMOVAL . For 2.4L, refer to CONTROL VALVE, OIL INTAKE, REMOVAL .
    3. Perform a visual inspection of the open part of the solenoid (spool valve) for the presence of any debris (metallic or non-metallic).
      NOTE:

      If contamination is observed, the Camshaft 1/2 Position Solenoid/Oil Control Valve must be replaced. After replacing the valve, verify that the engine oil has been replaced with the appropriate oil in accordance with the Service Information.

      Were any problems found?

      Yes

      No

      • Go To  3
  3. CHECK THE CAMSHAFT 1/2 POSITION SOLENOID/OIL CONTROL VALVE ACTUATION
    1. Turn the ignition on.
    2. With the scan tool, actuate the Camshaft 1/2 Position Solenoid/Oil Control Valve.
    3. Perform a visual inspection of the spool valve for erratic movement or sticking during the forward and reverse stroke.
      NOTE:

      If sticking or erratic movement is observed, the Camshaft 1/2 Position Solenoid/Oil Control Valve must be replaced. After replacing the valve, verify that the engine oil has been replaced with the appropriate oil in accordance with the Service Information.

      Select the appropriate response from the choices below:

      Normal operation. No sticking or erratic movement is observed

      • Go To  4

      No movement is observed

      • Go To  7

      Sticking or erratic movement is observed

      • Replace the Camshaft 1/2 Position Solenoid/Oil Control Valve in accordance with the Service Information.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  4. INCORRECT ENGINE OIL VISCOSITY
    1. Review the vehicle service history to determine if the correct viscosity engine oil was used.

      Were any problems found?

      Yes

      • Change the engine oil in accordance with the service information and retest.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .

      No

      • Go To  5
  5. ENGINE OIL DIRTY OR CONTAMINATED
    1. Turn the ignition off.
    2. Inspect engine oil for signs of contamination, sludge, or foreign material.

      Were any problems found?

      Yes

      • Clean the engine oil system, including oil passages, in accordance with the service information and retest.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .

      No

      • Go To  6
  6. LOW ENGINE OIL PRESSURE
    1. Perform the CHECKING ENGINE OIL PRESSURE diagnostic procedure. For 2.0l, Refer to CHECKING ENGINE OIL PRESSURE . For 2.4l, refer to CHECKING ENGINE OIL PRESSURE . .
    2. Compare the oil pressure readings to the specifications. Refer to Specifications in the appropriate Engine section.2.0L ENGINE SPECIFICATIONS or 2.4L ENGINE SPECIFICATIONS

      Is the engine oil pressure below specifications?

      Yes

      • Repair the cause of the low engine oil pressure in accordance with the service information and retest.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .

      No

      • Go To  12
  7. CAMSHAFT 1/2 POSITION SOLENOID/OIL CONTROL VALVE WIRING AND CONNECTORS
    1. Turn the ignition off.
    2. Inspect the wiring and connectors between the Camshaft 1/2 Position Solenoid/Oil Control Valve and the Powertrain Control Module (PCM).
    3. Look for any chafed, pierced, pinched, or partially broken wires.
    4. Look for broken, bent, pushed out or corroded terminals.

      Were any problems found?

      Yes

      No

      • Go To  8
  8. CHECK THE GROUND CIRCUIT FOR HIGH RESISTANCE

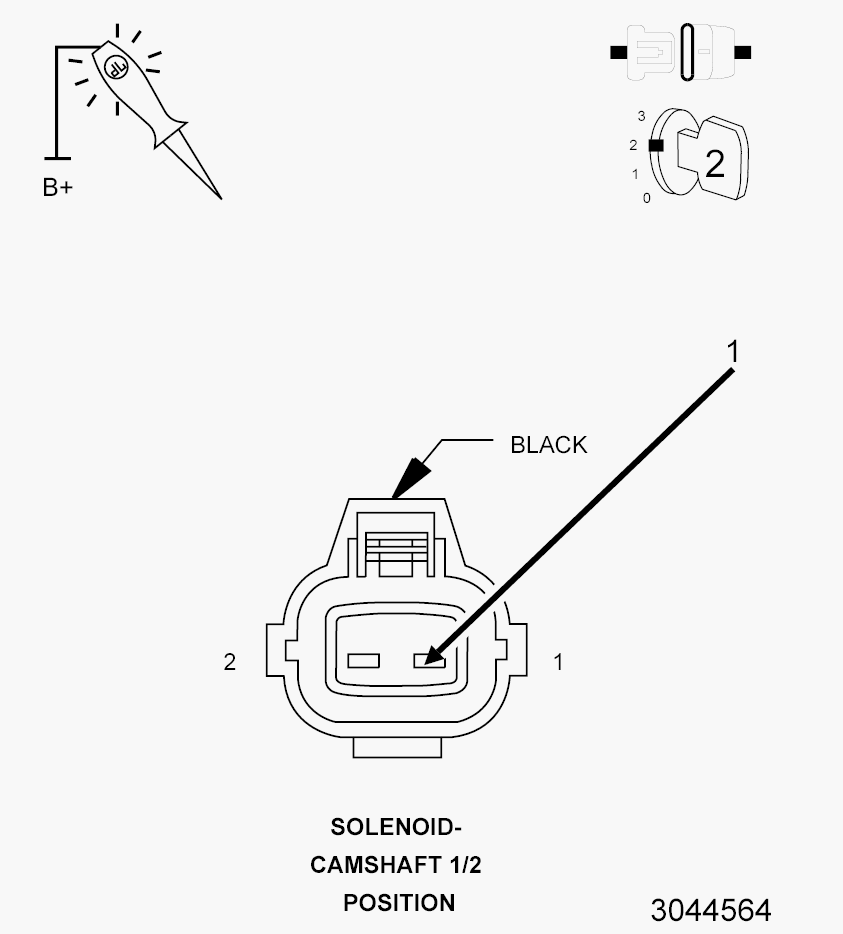

    Fig 1: Checking Ground Circuit For Open Or High Resistance
    GC0149737Courtesy of CHRYSLER GROUP, LLC
    1. Turn the ignition off.
    2. Disconnect the Camshaft 1/2 Position Solenoid/Oil Control Valve harness connector.
    3. Turn the ignition on.
    4. Using a 12-volt test light connected to B (+), check the Ground circuit in the Camshaft 1/2 Position Solenoid/Oil Control Valve harness connector.
      NOTE:

      The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.

      Is the test light illuminated and bright?

      Yes

      • Go To  9

      No

      • Repair the Ground circuit for an open or high resistance.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  9. CHECK THE (K276) CMP 1/2 CONTROL CIRCUIT

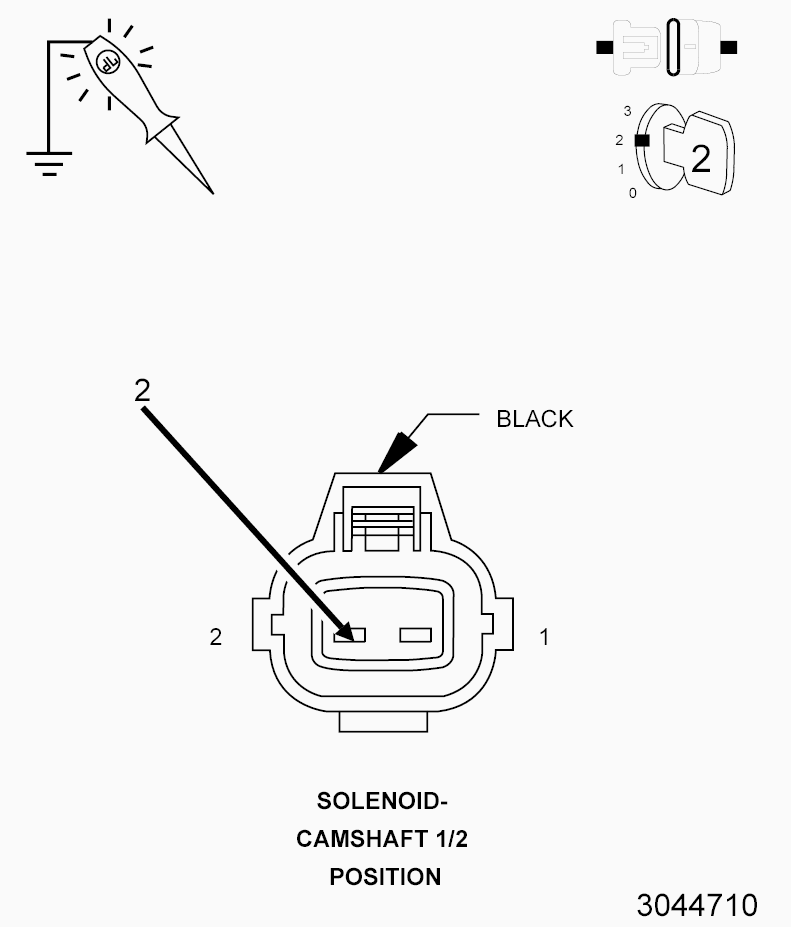

    Fig 2: Checking CMP 1/2 Control Circuit Actuation
    GC0149739Courtesy of CHRYSLER GROUP, LLC
    1. With the scan tool, actuate the Camshaft 1/2 Position Solenoid/Oil Control Valve to the ON (maximum percentage) position.
    2. Using a 12-volt test light connected to ground, check the (K276) CMP 1/2 Control circuit in the Camshaft 1/2 Position Solenoid harness connector.
      NOTE:

      The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.

      Is the test light illuminated and bright?

      Yes

      • Go To  11

      No

      • Go To  10
  10. CHECK THE (K276) CMP 1/2 CONTROL CIRCUIT FOR AN OPEN/HIGH RESISTANCE
    1. Turn the ignition off.
    2. Disconnect the PCM C2 harness connector.
      CAUTION:

      Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install the GPEC Diagnostic Adaptor to perform the diagnosis.

    3. Connect the (special tool #10436, Adapter, GPEC Diagnostic).
    4. Measure the resistance of the (K276) CMP 1/2 Control circuit between the Camshaft 1/2 Position Solenoid harness connector and the GPEC Adaptor.

      Is the resistance below 5.0 Ohms?

      Yes

      • Go To  13

      No

      • Repair the (K276) CMP 1/2 Control circuit for an open or high resistance.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  11. CAMSHAFT 1/2 POSITION SOLENOID/OIL CONTROL VALVE
    1. Turn the ignition off.
    2. Inspect the wiring and connectors between the Camshaft 1/2 Position Solenoid/Oil Control Valve and the Powertrain Control Module (PCM).
    3. Look for any chafed, pierced, pinched, or partially broken wires.
    4. Look for broken, bent, pushed out or corroded terminals.

      Were any problems found?

      Yes

      No

  12. CAMSHAFT PHASER
    1. Turn the ignition off.
    2. Remove the appropriate Camshaft Phaser in accordance with the Service information.
    3. Inspect the Phaser for contamination, foreign material, or any condition that would restrict operation of the Phaser.
    4. Inspect the Phaser oil passages for signs of sludge or foreign material.
      NOTE:

      The Phaser should not be disassembled. If the Phaser is damaged, it must be replaced.

      Were any problems found?

      Yes

      No

  13. POWERTRAIN CONTROL MODULE (PCM)
    1. Turn the ignition off.
    2. Inspect the wiring and connectors between the Camshaft 1/2 Position Solenoid/Oil Control Valve and the Powertrain Control Module (PCM).
    3. Look for any chafed, pierced, pinched, or partially broken wires.
    4. Look for broken, bent, pushed out or corroded terminals.
    5. Perform any Technical Service Bulletins (TSBs) that apply.

      Were any problems found?

      Yes

      No
