Switch-Bank-Lower (D6640A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 174044-2

Part Description: INS 8-WAY

Connector No: D6640A

Option: Standard

Repair Kit Part Number: 68057288AA

Cavity Count: 8

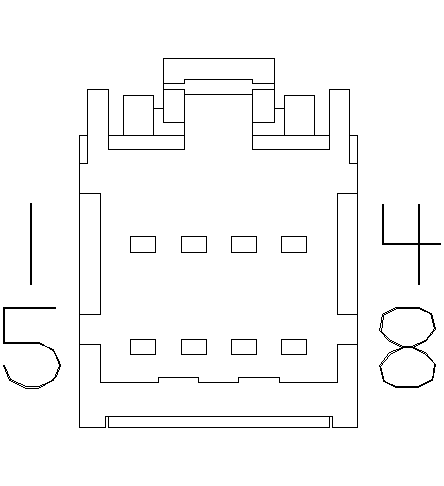

Fig 1: Switch-Bank-Lower Connector End View

GCWD1024320

Courtesy of CHRYSLER

Fig 2: Switch-Bank-Lower Component Location

GCWD1160606

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

6

A935

RD

0.35

FUSED B(+)

N/A

7

Z911

BK

0.50

GROUND

N/A

8

D506

WH/DG

0.35

LIN BUS

N/A

⁽¹⁾	Pins not listed are not used for this connector
