Switch-Clutch Interlock (D2212A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 54200300

Part Description: Not Available

Connector No: D2212A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count:

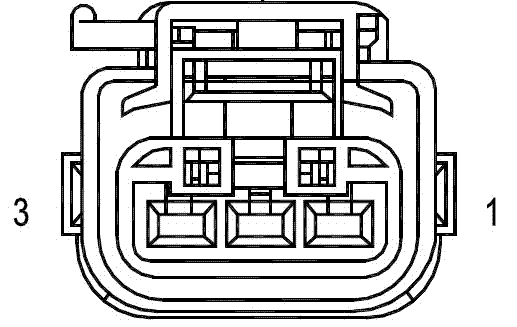

Fig 1: Switch-Clutch Interlock Connector End View

GCWD1085558

Courtesy of CHRYSLER

Fig 2: Switch-Clutch Interlock Component Location

GCWD1212002

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

2

Z923

BK/YL

0.50

GROUND

N/A

3

T120

DB/OR

0.50

MTX-CLUTCH INTERLOCK / ATX-PARK NEUTRAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
