Switch-Engine Oil Pressure (D2266A)

Harness-Family: Powertrain

Color: LIGHT GREEN

Gender: FEMALE

Part Number: 54200212

Part Description: Not Available

Connector No: D2266A

Option: Standard

Repair Kit Part Number: 05019913AA

Cavity Count:

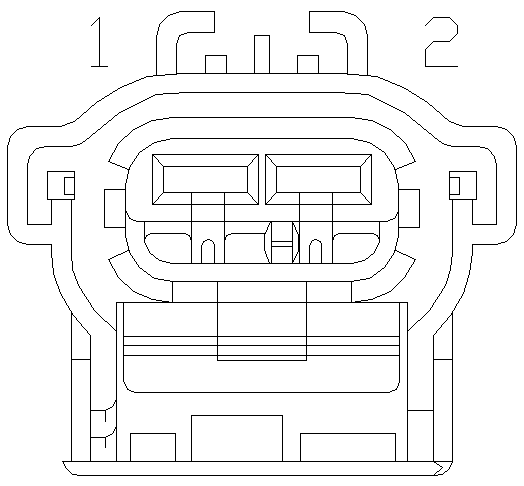

Fig 1: Switch-Engine Oil Pressure Connector End View

Courtesy of CHRYSLER

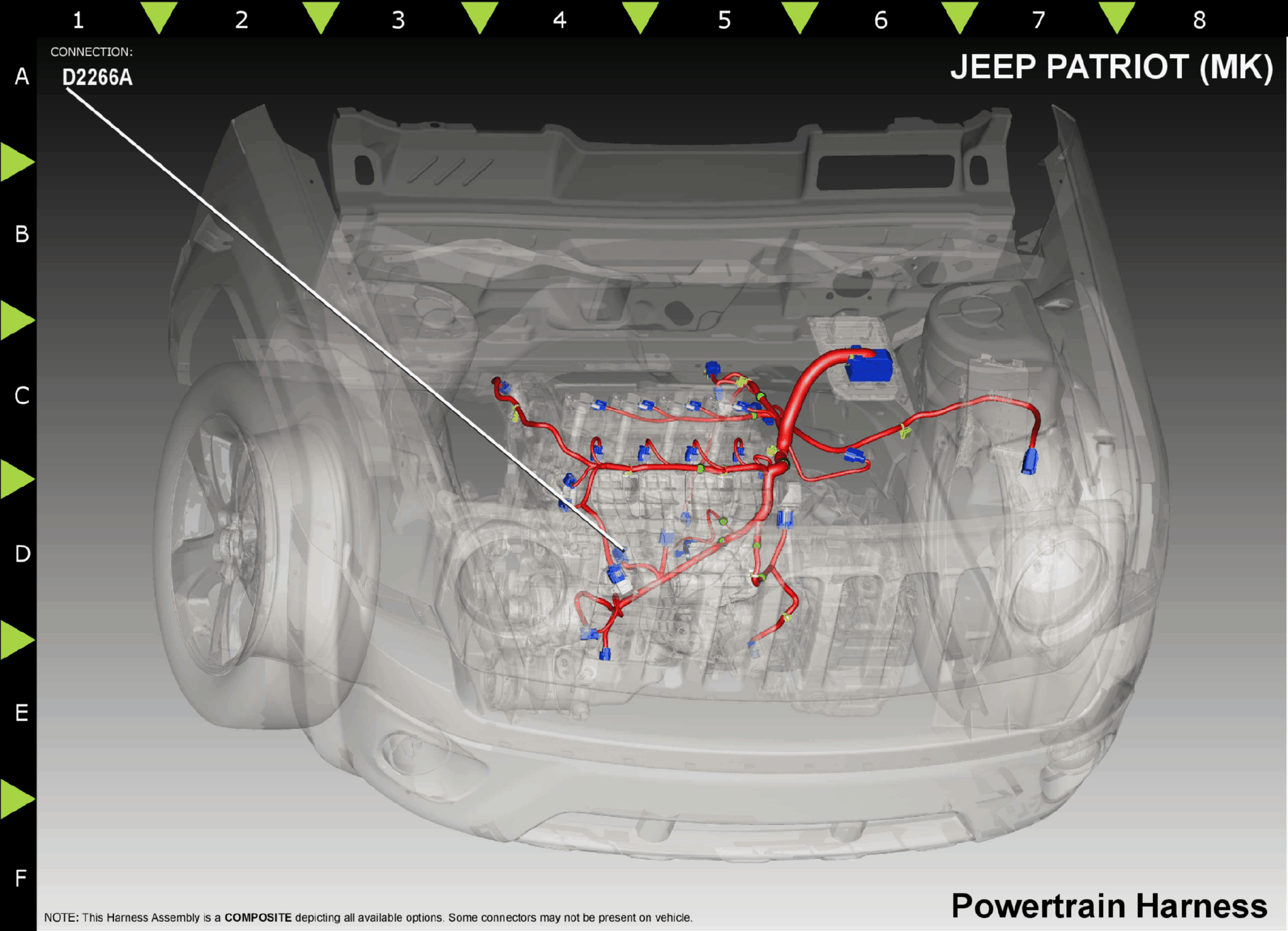

Fig 2: Switch-Engine Oil Pressure Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

VT/GY

0.50

OIL PRESSURE SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
