Connector End Views & Electrical Component Locations (3 Of 3): SZ919

Harness-Family: Door_Front_Left

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: SZ919

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: ~~

Fig 1: Sz919 Connector End View

Courtesy of CHRYSLER

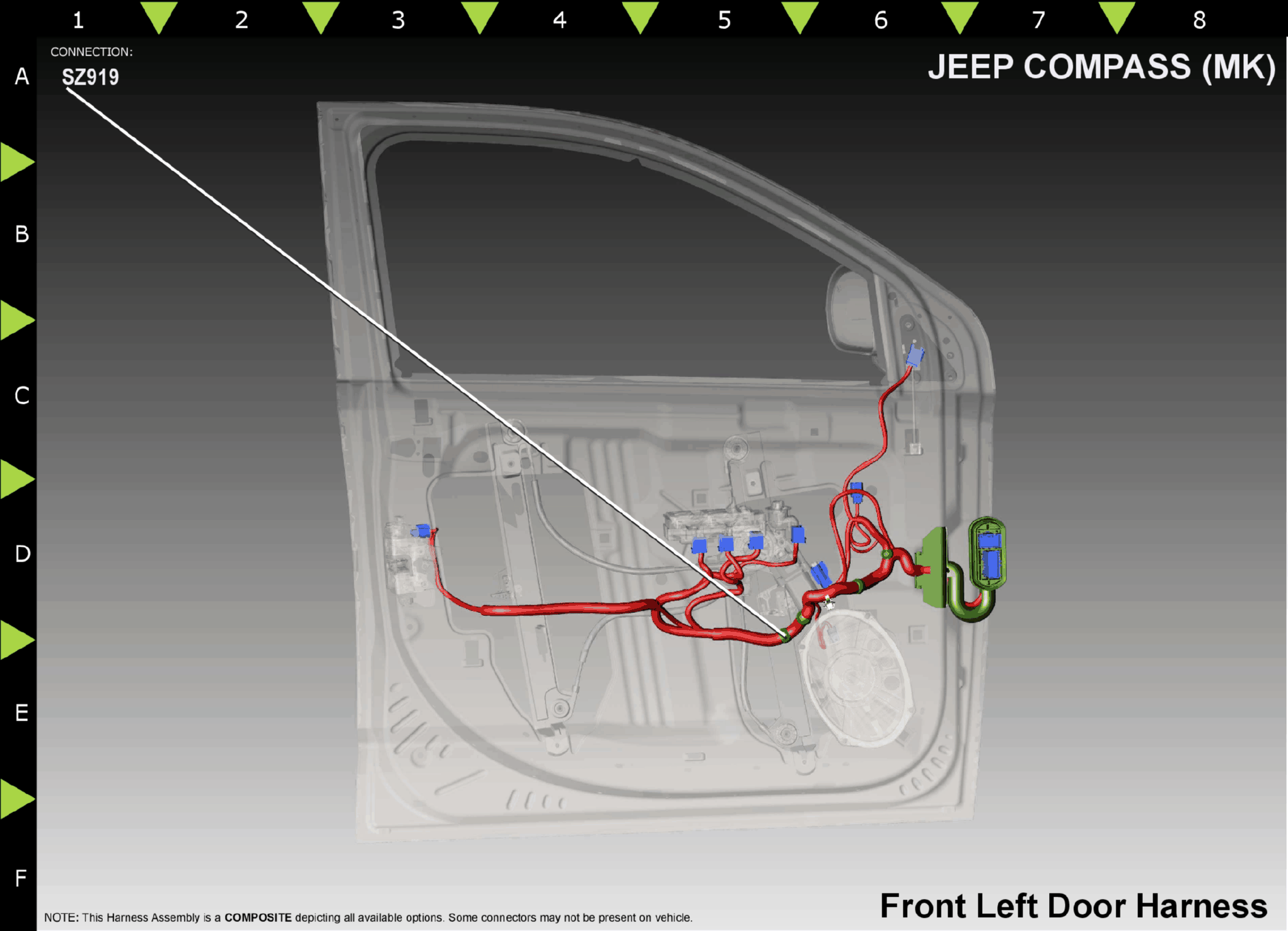

Fig 2: Sz919 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z919

BK/LB

0.50

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
