Module-Totally Integrated Power C7 (D3830G)

Harness-Family: Body

Color: LIGHT GRAY

Gender: FEMALE

Part Number: 7283-4970-40

Part Description: (18P 2.8 + 4P 6.3) LIF YESC SUB ASSEMBLY

Connector No: D3830G

Option: Standard

Repair Kit Part Number: 68020746AA

Cavity Count: 22

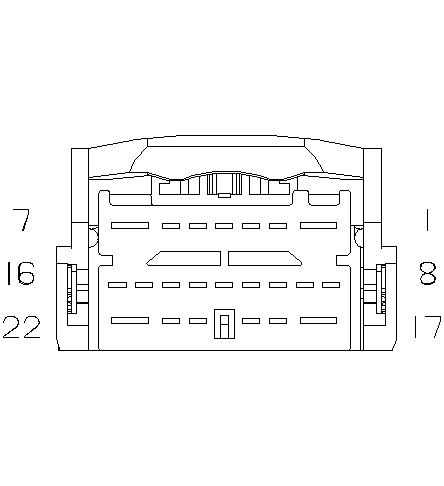

Fig 1: Module-Totally Integrated Power C7 Connector End View

Courtesy of CHRYSLER

Fig 2: Module-Totally Integrated Power C7 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A100

RD/VT

FUSED B(+)

N/A

A923

RD/WT

0.80

SWITCHED B(+)

N/A

A924

0.35

FUSED B(+)

N/A

A952

RD/OR

0.35

FUSED B(+)

N/A

F200

PK/LB

0.35

FUSED IGNITION SWITCH OUTPUT (RUN-START)

N/A

A190

YL/RD

0.80

FUSED B(+)

N/A

F100

DG/YL

0.50

FUSED IGNITION RUN CONTROL OUTPUT

N/A

A929

RD/YL

FUSED B(+)

N/A

A933

RD/LG

0.50

FUSED B(+)

N/A

DB/OR

FUEL PUMP CONTROL OUTPUT

N/A

A417

RD/DG

0.50

FUSED B(+)

N/A

A412

RD/DB

0.35

FUSED B(+)

N/A

A16

RD/BR

FUSED B(+)

N/A

A932

RD/BR

0.80

FUSED B(+)

N/A

F996

PK/YL

0.50

FUSED IGNITION SWITCH OUTPUT (RUN-ACC)

N/A

F981

PK/BR

FUSED IGNITION RUN/ACCESSORY CONTROL OUTPUT

N/A

A999

RD/PK

0.80

FUSED B(+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
