Module-UGDO (D3826A)

Harness-Family: Headliner_NonSNR

Color: NATURAL

Gender: FEMALE

Part Number: 2-1718346-1

Part Description: Not Available

Connector No: D3826A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 3

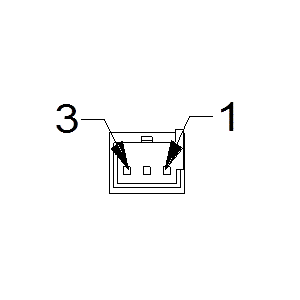

Fig 1: Module-UGDO Connector End View

GCWD1013941

Courtesy of CHRYSLER

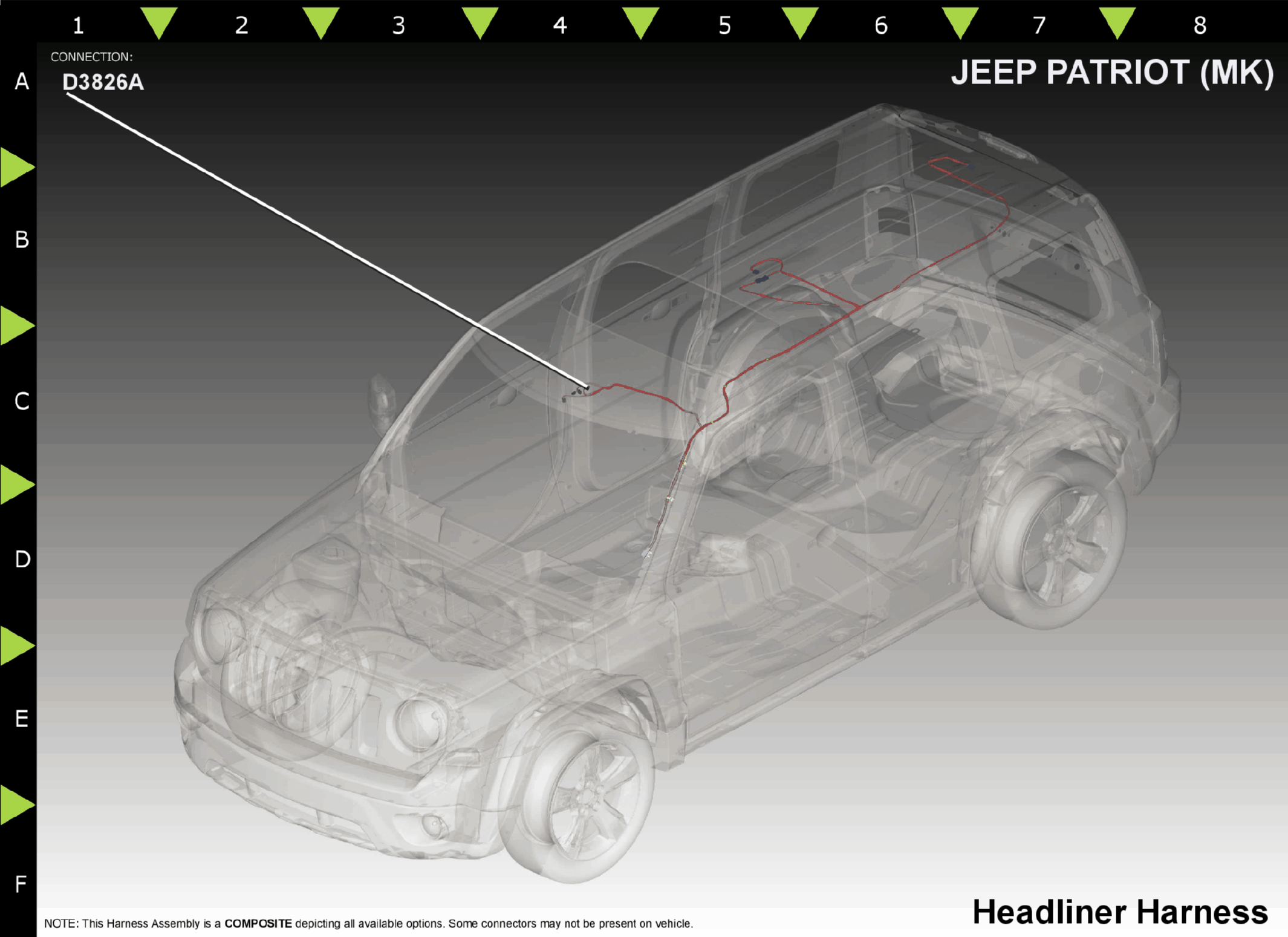

Fig 2: Module-UGDO Component Location

GCWD1212058

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

A417

RD

0.50

FUSED B(+)

N/A

3

G38

GY

0.35

UGDO ENABLE CONTROL CIRCUIT

N/A

⁽¹⁾	Pins not listed are not used for this connector
