Motor-Sunroof (D3036A)

Harness-Family: A_Pillar

Color: LIGHT GRAY

Gender: FEMALE

Part Number: 7283-6455-40

Part Description: KAIZEN YESC CONNECTOR SUB ASSEMBLY

Connector No: D3036A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 10

Fig 1: Motor-Sunroof Connector End View

Courtesy of CHRYSLER

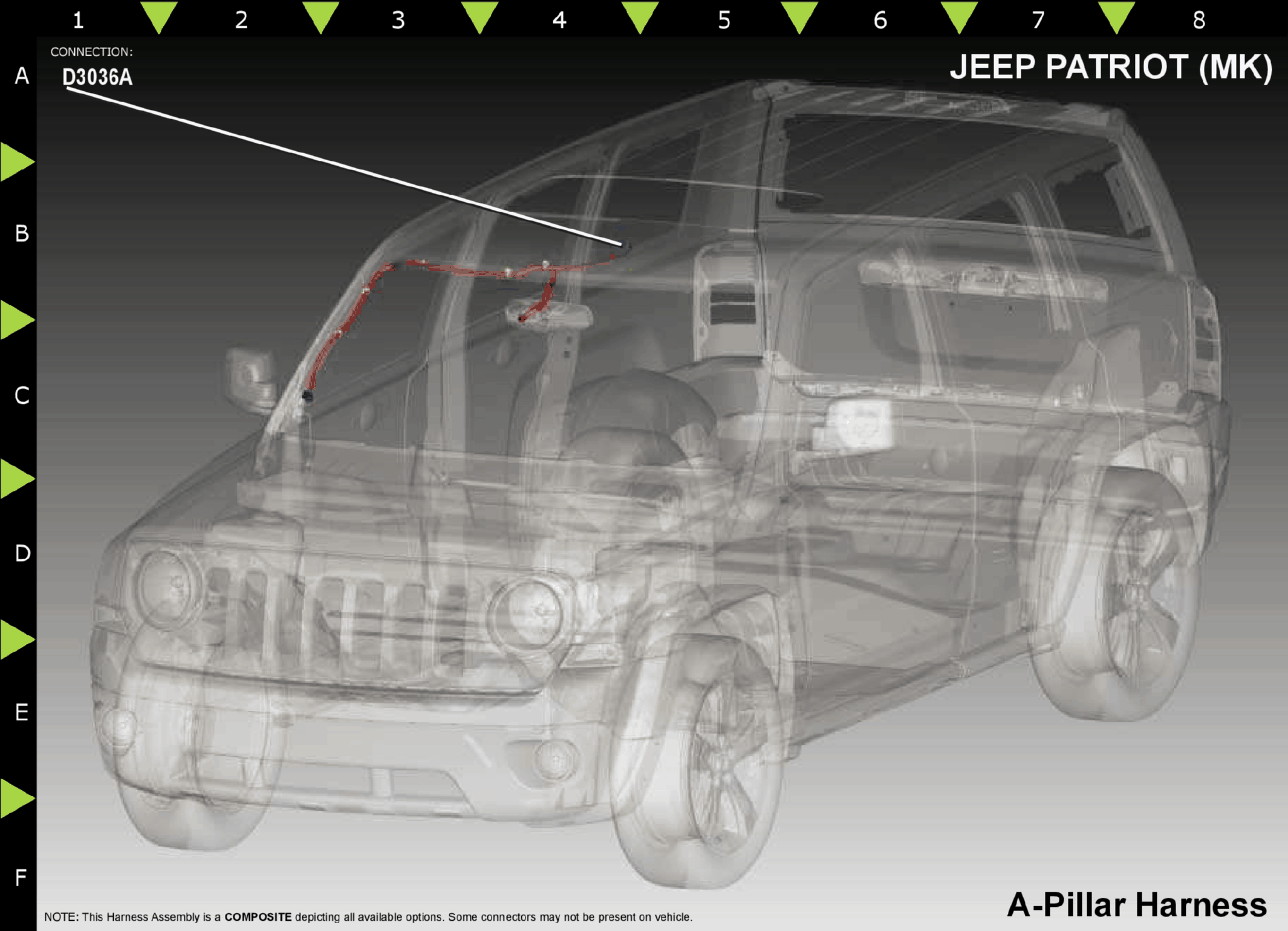

Fig 2: Motor-Sunroof Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z912

0.50

GROUND

N/A

OR/LG

0.35

SUNROOF SWITCH SUPPLY

N/A

F996

PK/YL

0.50

FUSED IGNITION SWITCH OUTPUT (RUN-ACC)

N/A

OR/YL

0.35

SUNROOF VENT SWITCH SENSE

N/A

OR/TN

0.35

SUNROOF OPEN SWITCH SENSE

N/A

A927

0.50

FUSED B(+)

N/A

OR/LB

0.35

SUNROOF CLOSE SWITCH SENSE

N/A

⁽¹⁾	Pins not listed are not used for this connector
