Radio C1 (D3843A)

Harness-Family: IP

Color: GRAY

Gender: FEMALE

Part Number: 638207-6

Part Description: INSULATOR

Connector No: D3843A

Option: Standard

Repair Kit Part Number: 05135638AA

Cavity Count: 10

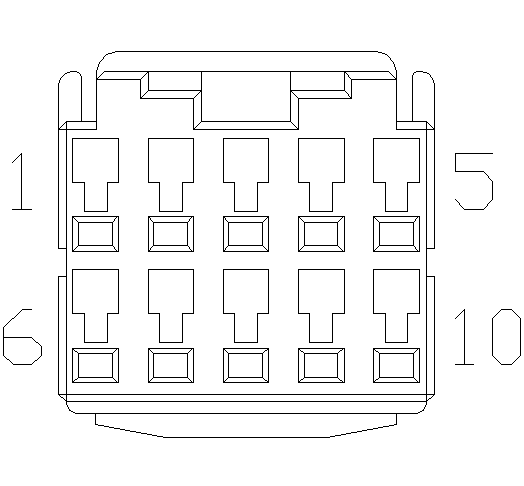

Fig 1: Radio C1 Connector End View

GCWD1024704

Courtesy of CHRYSLER

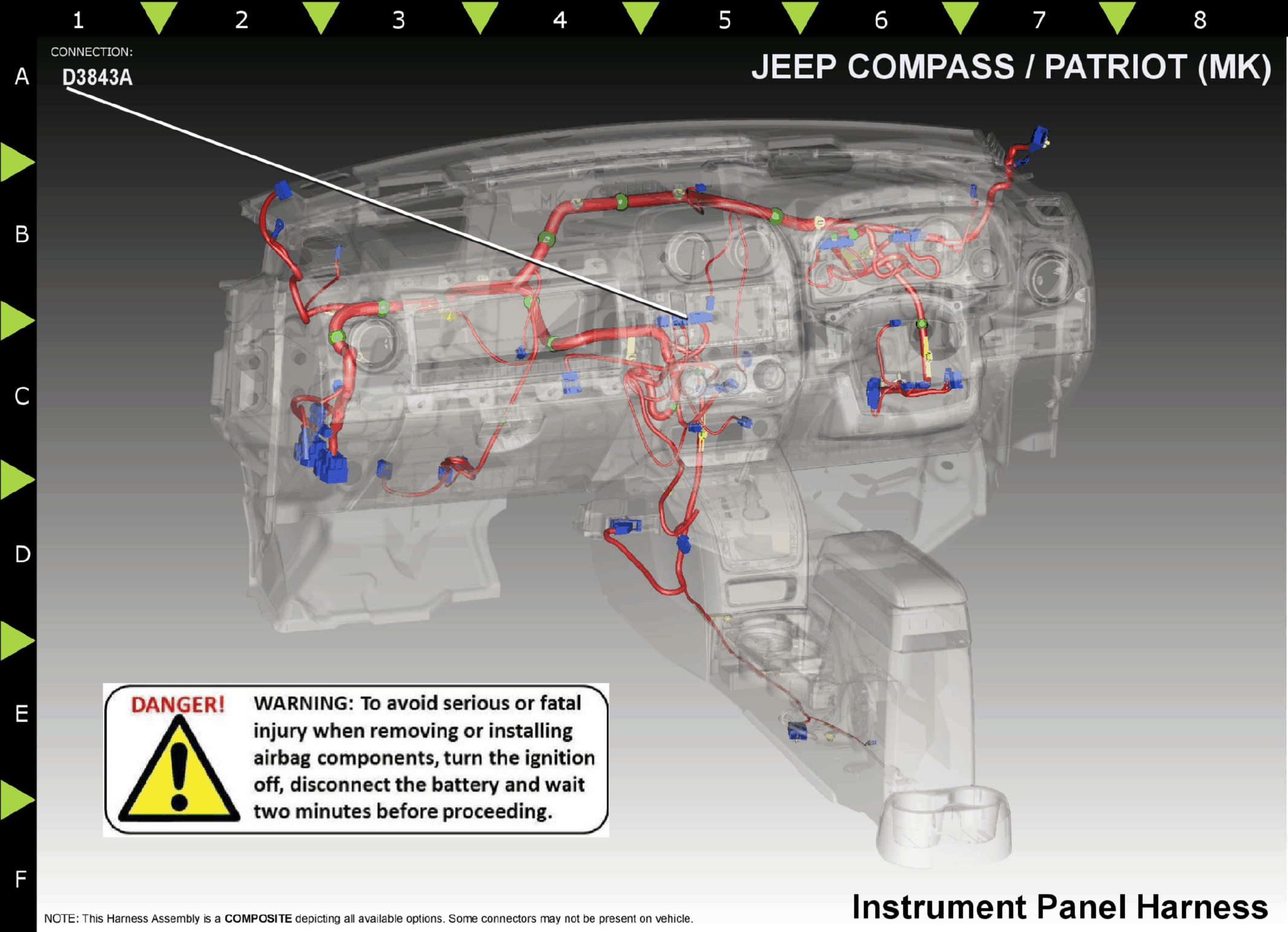

Fig 2: Radio C1 Component Location

GCWD1160443

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

X703

DG/OR

0.35

LEFT AUDIO OUTPUT

N/A

2

X704

DG/PK

0.35

RIGHT AUDIO OUTPUT

N/A

6

X795

DG

0.35

COMMON AUDIO OUTPUT

N/A

⁽¹⁾	Pins not listed are not used for this connector
