SD55 (IP)

Harness-Family: IP

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: SD55

Option: IP

Repair Kit Part Number: Not Available

Cavity Count: ~~

Fig 1: Sd55 Connector End View (IP)

GCWD1006420

Courtesy of CHRYSLER

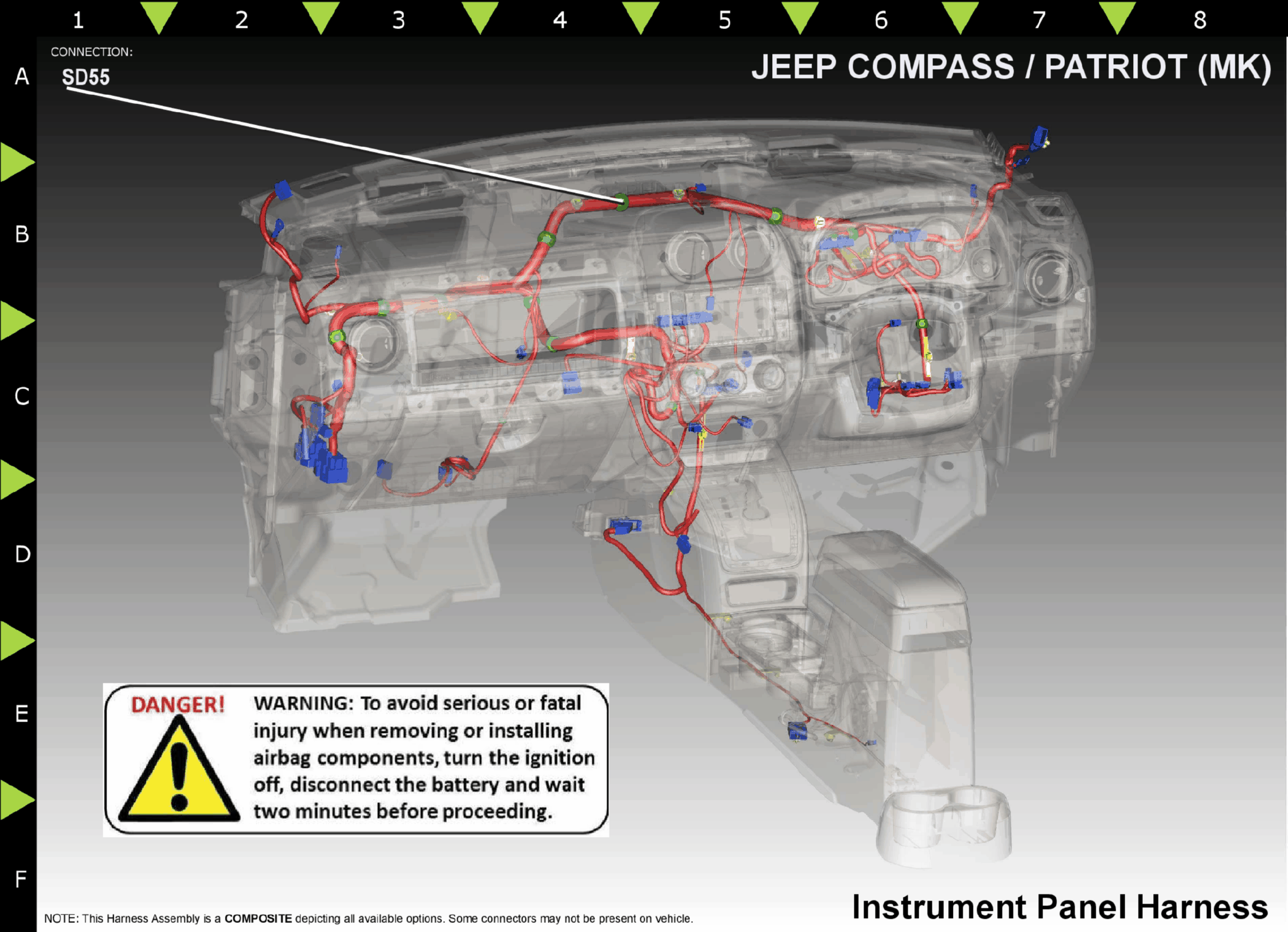

Fig 2: Sd55 Component Location (IP)

GCWD1160619

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

D55

WH/OR

0.35

CAN B (+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
