Sensor-Manifold Absolute Pressure (D1537A)

Harness-Family: Powertrain

Color: BLACK

Gender: FEMALE

Part Number: 7287-1627-30

Part Description: YESC RP TOP LOCK W/CPA

Connector No: D1537A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 3

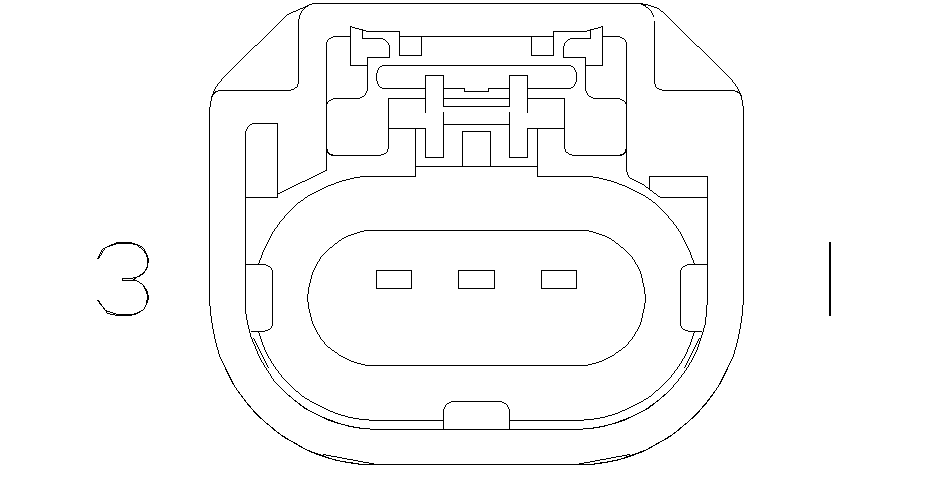

Fig 1: Sensor-Manifold Absolute Pressure Connector End View

Courtesy of CHRYSLER

Fig 2: Sensor-Manifold Absolute Pressure Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

VT/BR

0.50

MAP SIGNAL

N/A

K900

DB/DG

0.50

SENSOR GROUND

N/A

F856

YL/PK

0.50

5 VOLT SUPPLY

N/A

⁽¹⁾	Pins not listed are not used for this connector
