Module-Totally Integrated Power C5 (D3830E)

Harness-Family: HDLP_Dash

Color: BLUE

Gender: FEMALE

Part Number: 7283-9068-90

Part Description: KAIZEN SUB ASSEMBLY (KEYWAY OPTION E)

Connector No: D3830E

Option: Standard

Repair Kit Part Number: 68030130AA

Cavity Count: 14

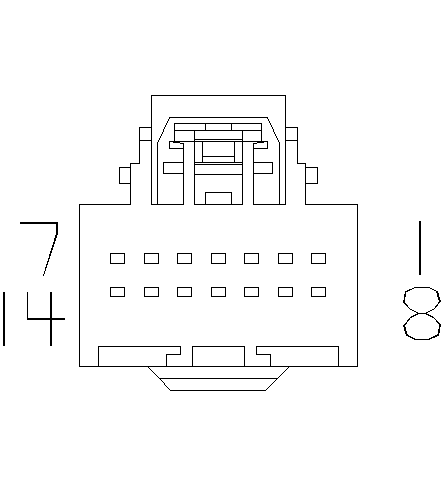

Fig 1: Module-Totally Integrated Power C5 Connector End View
GCWD1006329Courtesy of CHRYSLER

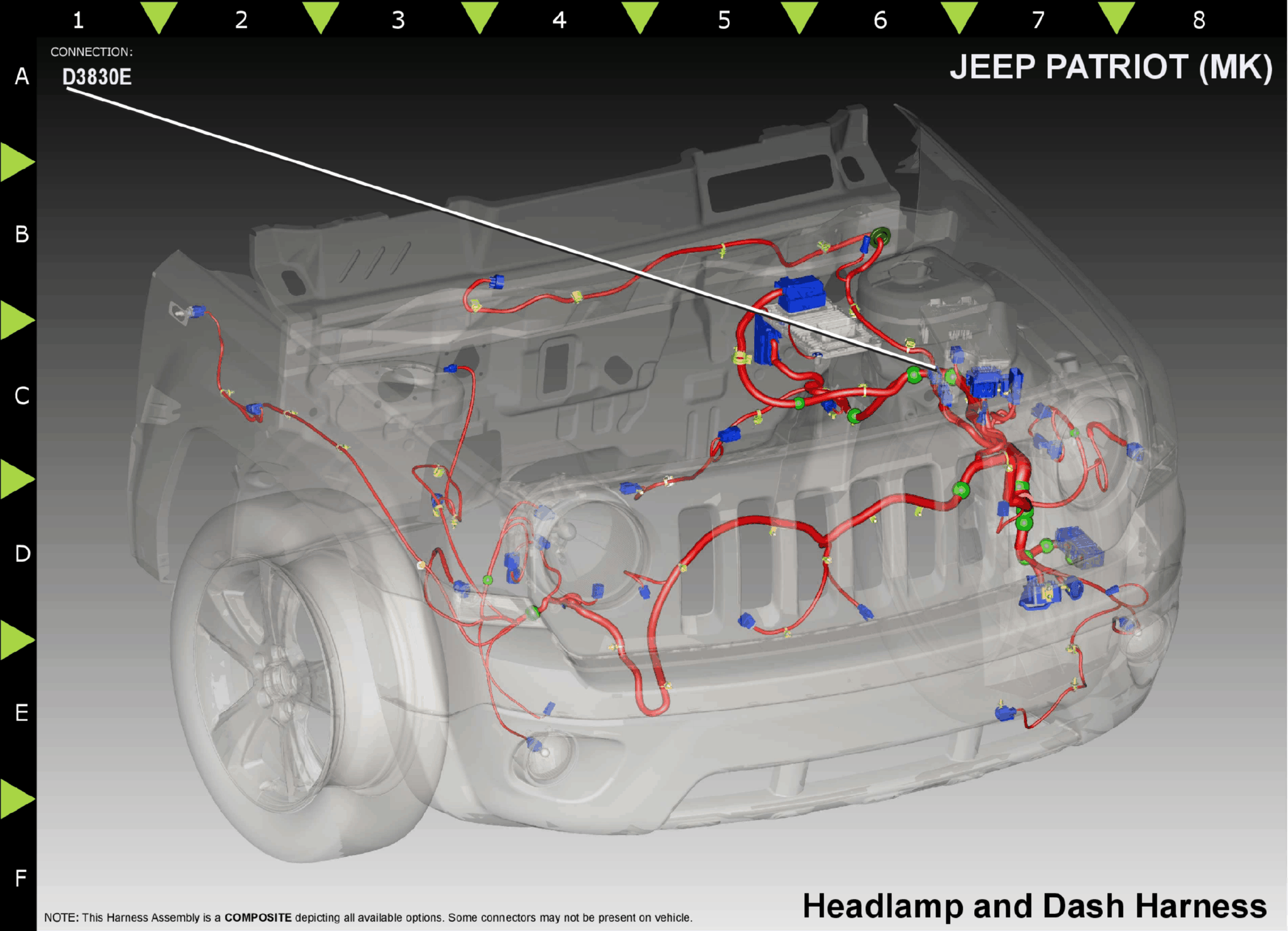

Fig 2: Module-Totally Integrated Power C5 Component Location
GCWD1160447Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 L70 WT/GY 0.50 FUSED PARK LAMP FEED N/A
2 L160 WT/TN 0.50 RIGHT FRONT TURN SIGNAL CONTROL N/A
3 L44 WT/TN 0.50 RIGHT LOW BEAM DRIVER N/A
4 L33 WT/LG 0.50 LEFT HIGH BEAM DRIVER N/A
5 L161 WT/LG 0.50 LEFT FRONT TURN SIGNAL CONTROL N/A
6 L7 WT/YL 0.50 PARK LAMP RELAY OUTPUT N/A
7 C818 LB/OR 0.50 A/C PRESSURE 5 VOLT SUPPLY N/A
8 T22 YL/VT 0.50 BACKUP LAMP SWITCH SIGNAL N/A
9 L131 WT/LG 0.50 LEFT HEADLAMP LEVEL SENSOR SIGNAL N/A
10 L132 LG/WT 0.50 RIGHT HEADLAMP LEVEL SENSOR SIGNAL N/A
12 C18 LB/BR 0.50 A/C PRESSURE SIGNAL N/A
13 C918 BK/LB 0.50 A/C PRESSURE RETURN N/A
(1) Pins not listed are not used for this connector
