Port-Media (D2470A)

Harness-Family: USB_CABLE

Color: CLEAR

Gender: FEMALE

Part Number: 13699432

Part Description: TAXI ASM CONN F DATA USB 2.0 BLK STD-A

Connector No: D2470A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 4

Fig 1: Port-Media Connector End View

Courtesy of CHRYSLER

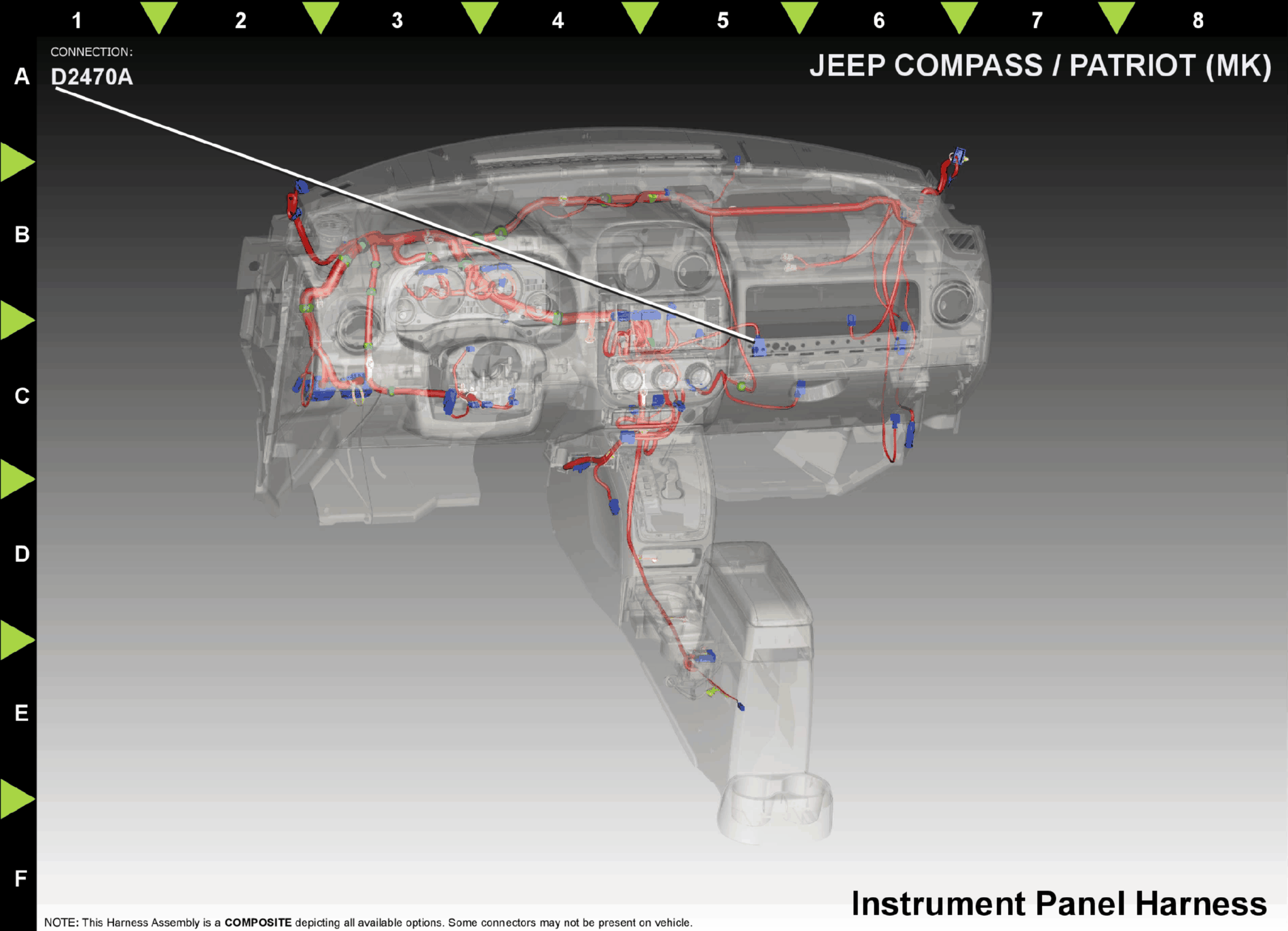

Fig 2: Port-Media Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

X442

0.35

UCI USB POWER

N/A

X445

0.35

UCI USB DATA (-)

N/A

X444

0.35

UCI USB DATA (+)

N/A

X443

0.35

UCI USB GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
