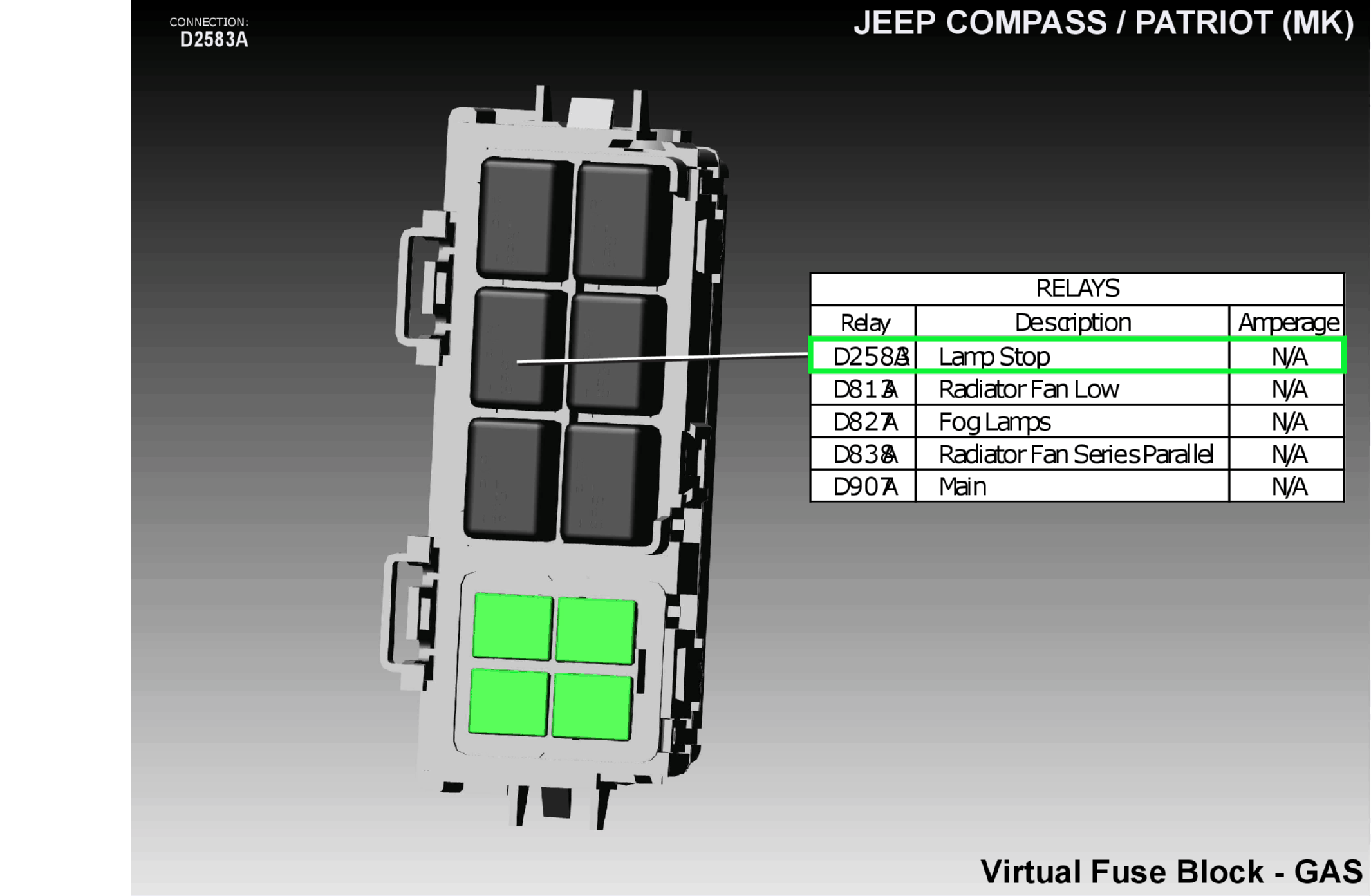

Relay-Brake Lamp (D2583A)
Harness-Family: Virtual_Fuse_Block
Color: NA
Gender: MALE
Part Number: G8HE-1C77-R1-DC12
Part Description: Not Available
Connector No: D2583A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 30 | A924 | RD | 0.50 | FUSED B(+) | N/A | ||
| 85 | A924 | RD | 0.50 | FUSED B(+) | N/A | ||
| 86 | B122 | DG/LG | 0.50 | BRAKE LAMP ACTIVATION RELAY CONTROL | N/A | ||
| 87 | L53 | DG/WT | 0.50 | BRAKE LAMP CONTROL OUTPUT 1 | N/A | ||
|
|||||||
