Sensor-Evaporator Temperature (D1500A)

Harness-Family: IP

Color: NATURAL

Gender: FEMALE

Part Number: 7283-1020

Part Description: Not Available

Connector No: D1500A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

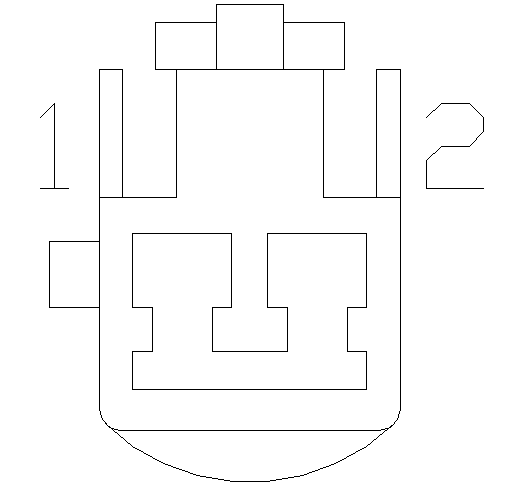

Fig 1: Sensor-Evaporator Temperature Connector End View

Courtesy of CHRYSLER

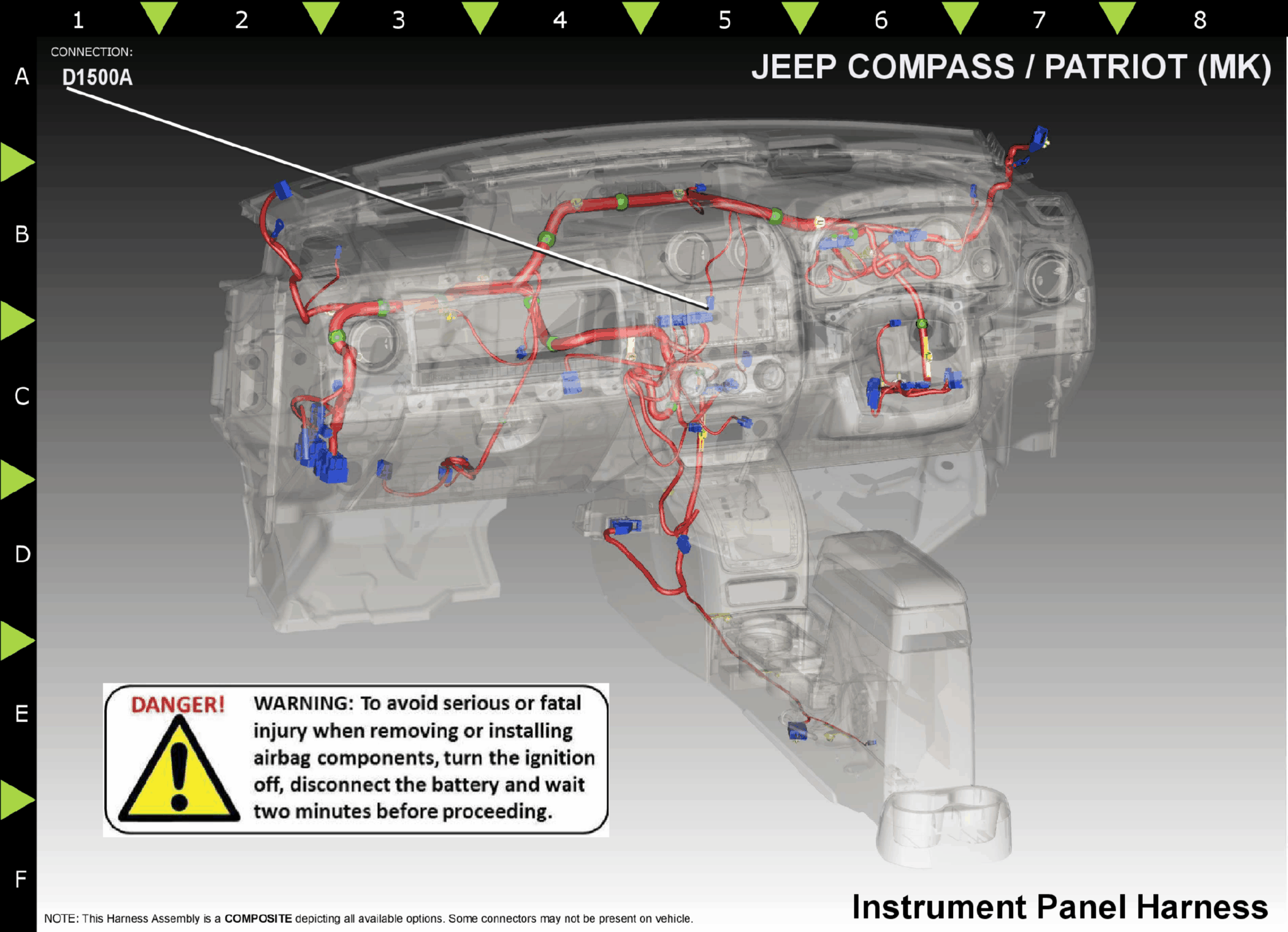

Fig 2: Sensor-Evaporator Temperature Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

C21

DB/LG

0.35

EVAPORATOR TEMPERATURE SENSOR SIGNAL

N/A

C121

DB/DG

0.35

SENSOR GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
