Sensor-Front Impact-Left (D1526A)

Harness-Family: HDLP_Dash

Color: NATURAL

Gender: FEMALE

Part Number: 7283-8794-70

Part Description: A/B 040-III CONNECTOR SUB ASSEMBLY

Connector No: D1526A

Option: Standard

Repair Kit Part Number: 68065009AA

Cavity Count: 2

Fig 1: Sensor-Front Impact-Left Connector End View

Courtesy of CHRYSLER

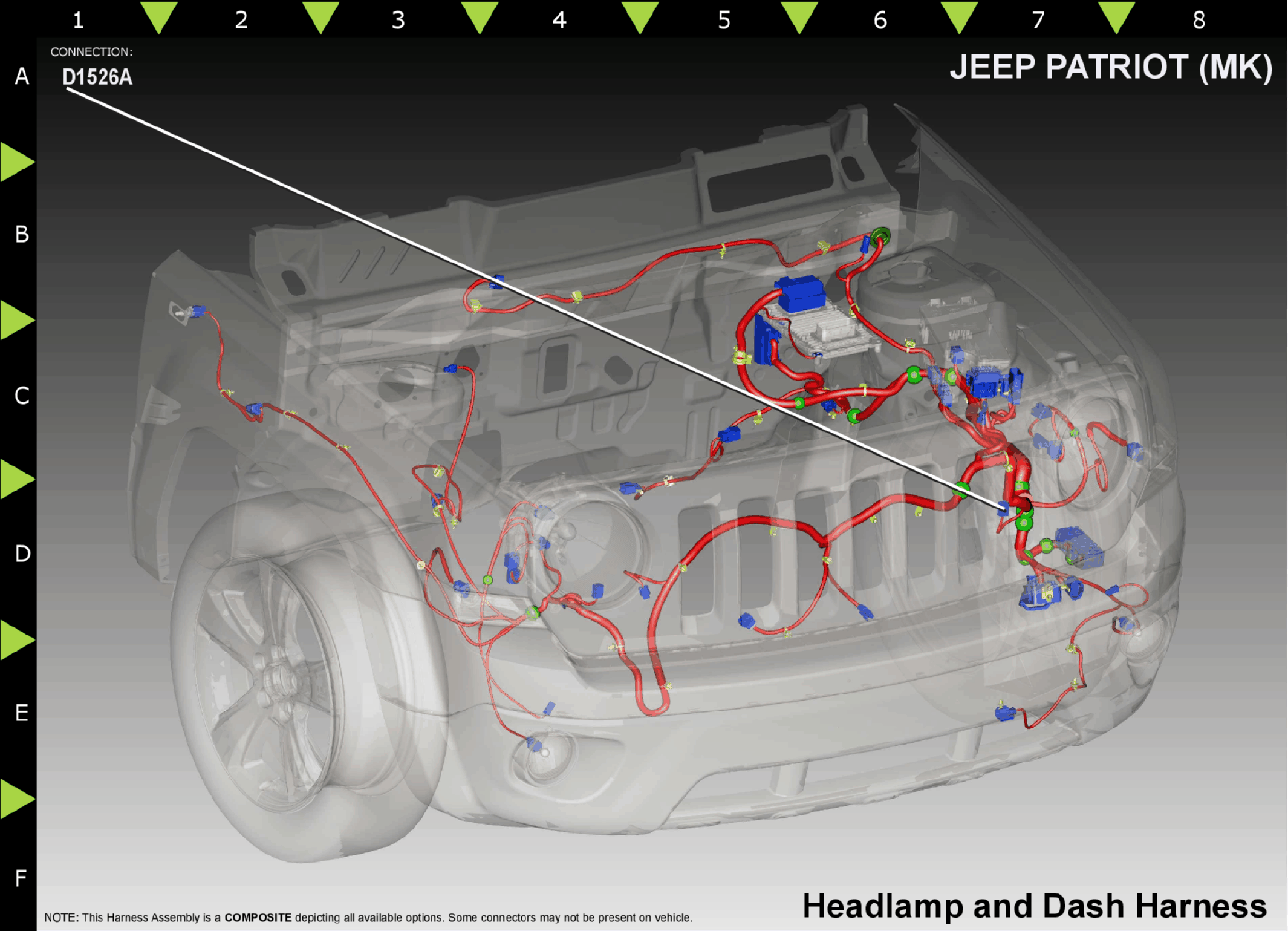

Fig 2: Sensor-Front Impact-Left Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R81

LB/WT

0.50

LEFT FRONT IMPACT SENSOR GROUND

N/A

R79

LB/VT

0.50

LEFT FRONT IMPACT SENSOR SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
