Sensor-Knock (D1534A)

Harness-Family: Powertrain

Color: BLACK

Gender: FEMALE

Part Number: 7223-7826-30

Part Description: Not Available

Connector No: D1534A

Option: Standard

Repair Kit Part Number: 05013946AA

Cavity Count: 2

Fig 1: Sensor-Knock Connector End View

GCWD1006587

Courtesy of CHRYSLER

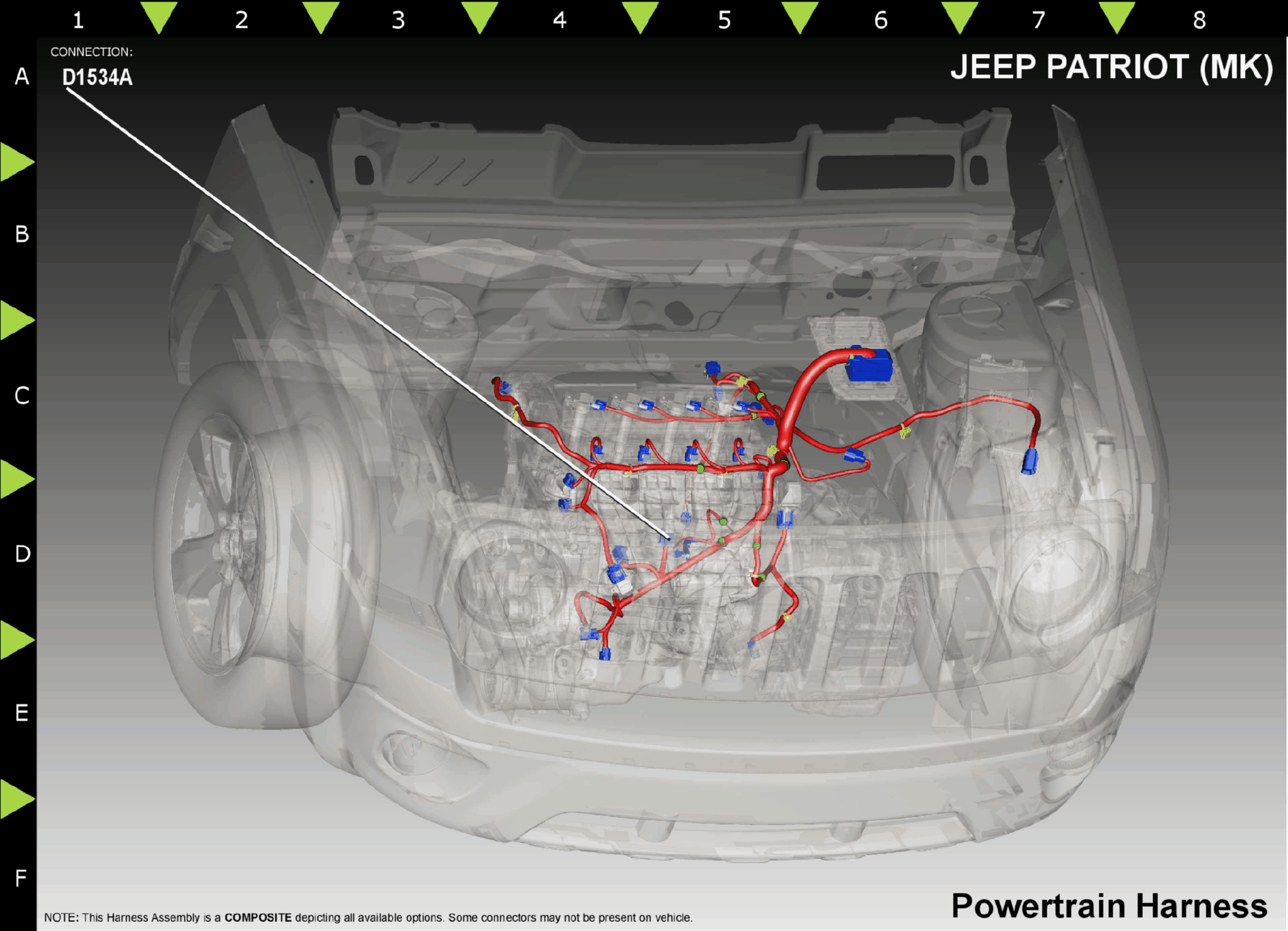

Fig 2: Sensor-Knock Component Location

GCWD1212032

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

K42

DB/YL

0.50

KS 1 SIGNAL

N/A

2

K942

BR/LG

0.50

KS 1 RETURN

N/A

⁽¹⁾	Pins not listed are not used for this connector
