Sensor-Side Impact-Right 1 (D1531A)

Harness-Family: Body

Color: YELLOW

Gender: FEMALE

Part Number: 7283-7617-70

Part Description: A/B 0.64 4P SEALED CONNECTOR ASSEMBLY

Connector No: D1531A

Option: Standard

Repair Kit Part Number: 68065015AA

Cavity Count: 4

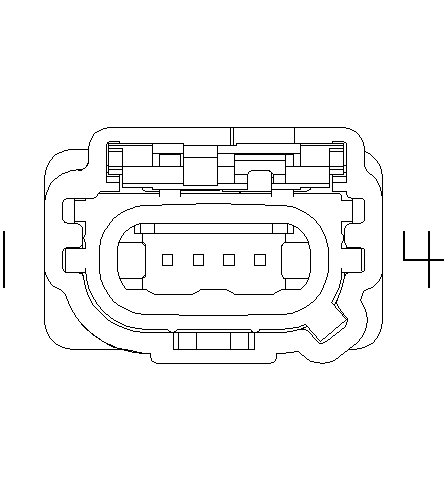

Fig 1: Sensor-Side Impact-Right 1 Connector End View

Courtesy of CHRYSLER

Fig 2: Sensor-Side Impact-Right 1 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R18

LB/LG

0.35

RIGHT SIDE IMPACT SENSOR 2 SIGNAL

N/A

R20

WT/LG

0.35

RIGHT SIDE IMPACT SENSOR 2 GROUND

N/A

R16

BR/LG

0.35

RIGHT SIDE IMPACT SENSOR 1 GROUND

N/A

R14

TN/LG

0.35

RIGHT SIDE IMPACT SENSOR 1 SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
